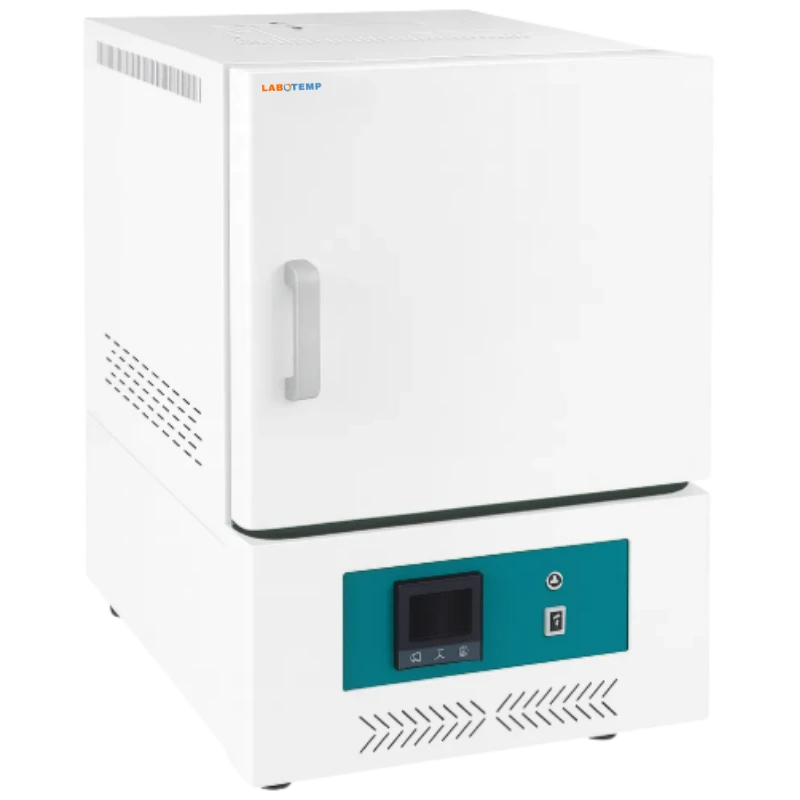

Labotemp Muffle Furnace FMU-07 is an ISO & CE-certified high-temperature muffle furnace engineered for laboratory and research use up to 1600°C (1500°C continuous). This compact benchtop electric muffle furnace combines a polycrystalline mullite fiber chamber, high-temperature alumina insulation and a cold-rolled steel shell to minimize heat loss and extend service life. MoSi₂ rod heating yields rapid rise time (<40 min) and uniform temperature distribution, making FMU-07 a high-efficiency furnace for ceramic sintering, crystal growth, metal annealing and advanced material development.
The digital muffle furnace features a 7″ touchscreen programmable PID controller with S-type sensor, 1°C resolution and ±1°C accuracy, multi-segment programming, timer and comprehensive safety protections. Ideal for ashing, thermal analysis and heat treatment, FMU-07 integrates easily into university, research institute and industrial lab workflows and is supported by Labotemp as a trusted furnace manufacturer and furnace supplier.
Why choose Muffle Furnace FMU-07?
✓ Certified Performance: ISO & CE compliance for lab standards.
✓ Precise Control: Touchscreen PID, S-type sensor (±1°C, 1°C res.)
✓ Rapid Heating: MoSi₂ rod system; <40 min rise time.
|
Model NO. : FMU-07 Model NO. |
FMU-07 |
|
Volume : 4L Volume |
4L |
|
Temperature Range : 1600℃ (1500℃ continuous) Temperature Range |
1600℃ (1500℃ continuous) |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 220V Current Rating |
AC 220V |
|
Power Rating : 5.5 kW Power Rating |
5.5 kW |
|
Heater : MoSi₂ Rod Heater |
MoSi₂ Rod |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : Polycrystalline Mullite fiber Chamber Material |
Polycrystalline Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : High-temp alumina fiber Insulation Layer |
High-temp alumina fiber |
|
Exhaust Hole : ODφ22 IDφ18 Exhaust Hole |
ODφ22 IDφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or 30-segment program Operation Function |
Constant temp or 30-segment program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; temp correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; temp correction |
|
Sensor : S-type Sensor |
S-type |
|
Safety Device : Overtemp; leakage; door-opening protection Safety Device |
Overtemp; leakage; door-opening protection |
|
Chamber Size (mm) : 150×150×150 Chamber Size (mm) |
150×150×150 |
|
Exterior Size (mm) : 600×815×1100 Exterior Size (mm) |
600×815×1100 |
|
Packing Size (mm) : 760×985×1310 Packing Size (mm) |
760×985×1310 |
|
NW/GW (kg) : 80/100 NW/GW (kg) |
80/100 |
|
Optional Type : Air inlet Optional Type |
Air inlet |
