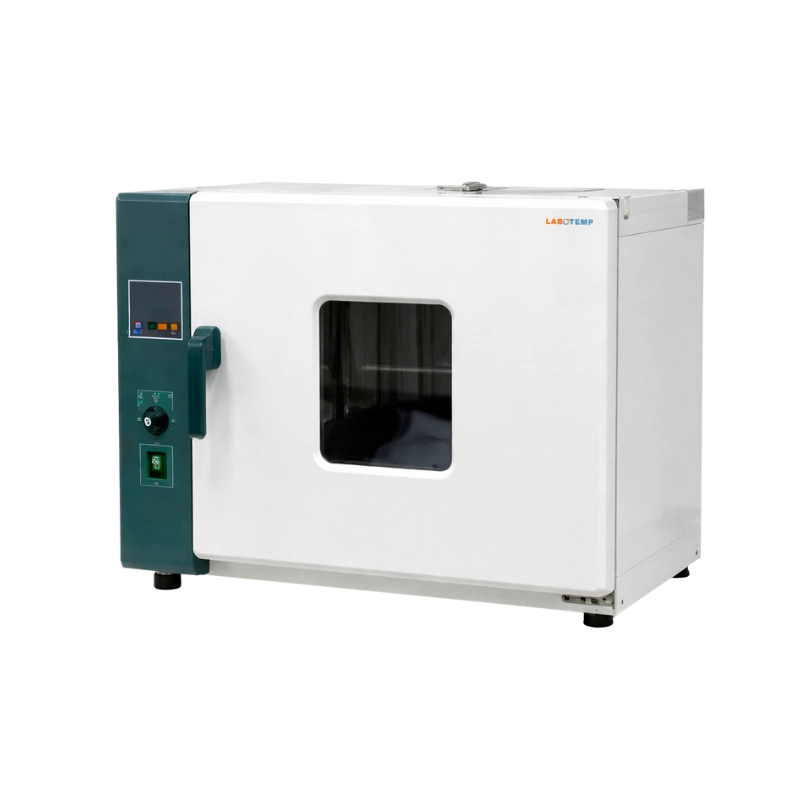

Labotemp Blast Drying Oven FOV-29 is a high-capacity 400L laboratory drying oven designed for precise drying, baking, curing, and thermal processing applications in research laboratories, pharmaceutical facilities, universities, quality control departments, and industrial environments. Featuring a spacious 400 L chamber capacity, this laboratory oven provides reliable temperature control from RT+10°C to 300°C with 0.1°C resolution and ±1°C temperature fluctuation, ensuring consistent and repeatable heating performance for demanding laboratory workflows. The stainless-steel inner chamber offers excellent corrosion resistance and easy cleaning, while the large observation window allows convenient monitoring of samples during operation.
Engineered for long-term reliability, the drying oven is equipped with an intelligent PID digital temperature controller featuring timer, over-temperature alarm, temperature correction, and self-tuning functions for accurate process control. The hot-air circulation system uses a low-noise cooling fan to maintain uniform temperature distribution throughout the chamber, improving drying efficiency and sample consistency. A variable fan speed control allows airflow adjustment according to application requirements, while the durable cold-rolled steel exterior with powder-coated finish enhances durability and operational life. With a 4500 W heating system and user-friendly design, the FOV-29 is ideal for routine laboratory drying, material conditioning, heat treatment, and quality testing applications.
Why Choose Labotemp Blast Drying Oven FOV-29?
✓ Large 400 L Capacity: Suitable for high-volume laboratory and industrial drying applications.
✓ Uniform Air Circulation: Adjustable fan-assisted airflow ensures consistent temperature distribution.
✓ Intelligent PID Control: Digital controller with timer, self-tuning, and over-temperature protection.
|
Chamber Capacity : 400 L Chamber Capacity |
400 L |
|
Temperature Range : RT +10°C to 300°C Temperature Range |
RT +10°C to 300°C |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Fluctuation : ±1°C Temperature Fluctuation |
±1°C |
|
Controller Type : Intelligent Digital PID Controller Controller Type |
Intelligent Digital PID Controller |
|
Heating Power : 4500 W Heating Power |
4500 W |
|
Air Circulation System : Hot Air Circulation with Low-Noise Cooling Fan Air Circulation System |
Hot Air Circulation with Low-Noise Cooling Fan |
|
Fan Speed Control : Adjustable Fan Speed Control |
Adjustable |
|
Chamber Material : Stainless Steel Chamber Material |
Stainless Steel |
|
Exterior Material : Powder-Coated Cold-Rolled Steel Exterior Material |
Powder-Coated Cold-Rolled Steel |
|
Observation Window : Double-Layer Tempered Glass Observation Window |
Double-Layer Tempered Glass |
|
Temperature Functions : Self-Tuning, Deviation Correction Temperature Functions |
Self-Tuning, Deviation Correction |
|
Safety Features : Over-Temperature Alarm Safety Features |
Over-Temperature Alarm |
|
Internal Dimensions (W × D × H) : 690 × 630 × 910 mm Internal Dimensions (W × D × H) |
690 × 630 × 910 mm |
|
External Dimensions (W × D × H) : 855 × 930 × 1085 mm External Dimensions (W × D × H) |
855 × 930 × 1085 mm |
|
Packaging Dimensions (W × D × H) : 950 × 1010 × 1240 mm Packaging Dimensions (W × D × H) |
950 × 1010 × 1240 mm |
|
Net Weight / Gross Weight : 118 kg / 167 kg Net Weight / Gross Weight |
118 kg / 167 kg |
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 350 × 350 × 350 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 350 × 450 × 450 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 450 × 550 × 550 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 500 × 600 × 700 mm
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0 – 9999 minutes
Temperature Resolution: 0.1 °C
Temperature Range: RT +10 °C to 300 °C
Temperature Fluctuation: ±1.0 °C
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 Minutes
Temperature Sensor: Pt100
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Temperature Functions: Self-Tuning, Deviation Correction
Temperature Fluctuation: ±1°C
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Volume (L): 50
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–500°C
Volume : 150L
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–500°C
Volume : 208L
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–600°C
Volume: 1000 L
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–250°C
Volume (L): 1300
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–300°C
Volume: 3070L
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–300°C
Voltage : 220V/110V 50/60Hz
Ventilation: Top moisture discharge hole
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Warm-Up Time (0–120°C): ≤140 Minutes
Timer Range: Up to 999 Hours
Temperature Resolution: 0.1°C
Temperature Range: Ambient to 300°C
Volume: 1870L
Timer: 0–9999 min (with Timing Wait Function)
Thermal Parameters:
Temperature Uniformity: ±3%
Vacuum Display: LCD display, accuracy class 0.5
Vacuum Degree Range: <133Pa
Timer: 0–9999 minutes (with timing wait function)
Temperature Sensor: PT100
Volume (L): 91
Timing: 0–9999 min
Temperature Control Mode: Two temperature section PID intelligent
Temp Range: RT+10–250°C
Volume: 52 L
Vacuum Meter: LCD display, accuracy class 0.5
Usable Vacuum Degree Range: <133 Pa
Timer: 0–9999 min (with timing wait function)
