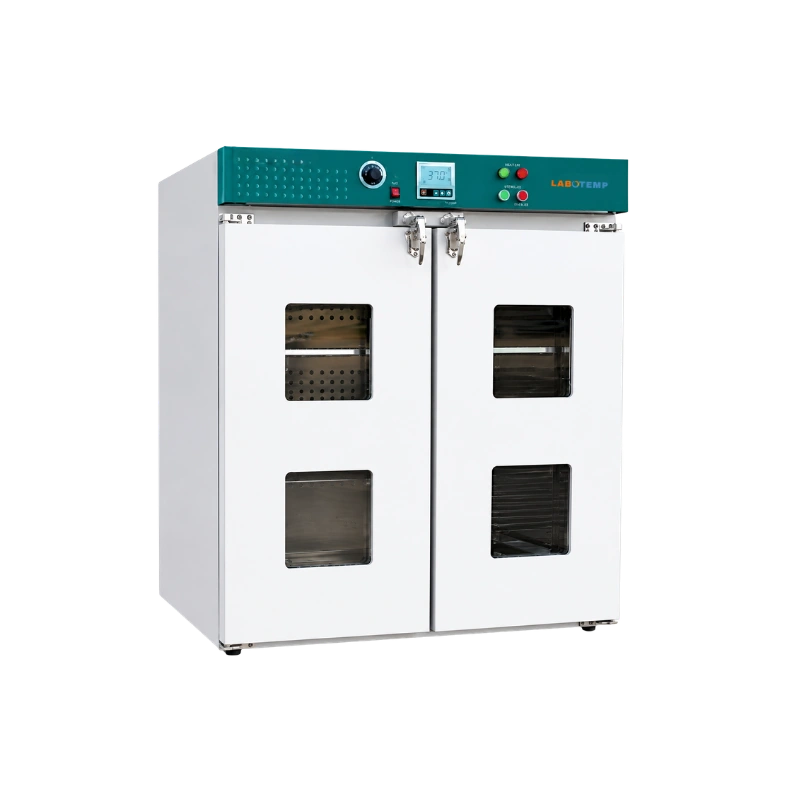

Labotemp Forced Air Drying Oven FOV-30 is a large-capacity industrial oven designed for dependable drying, heating, aging, conditioning, and thermal processing in laboratories, manufacturing facilities, and quality-control environments. Its forced-air circulation system uses a low-noise centrifugal fan to distribute heat evenly throughout the chamber, supporting consistent and repeatable results. With an operating range from ambient +10°C to 300°C, 0.1°C temperature resolution, ±1°C temperature fluctuation, and ±3% temperature uniformity, it is well suited to applications requiring stable thermal conditions and high-volume processing.
Built for demanding laboratory and industrial workflows, the oven features PID intelligent temperature control, PT100 sensing, touch-button operation, and an LCD digital display. Timer operation up to 9999 minutes, auto-stop, temperature deviation correction, menu locking, and power-off memory improve convenience and process reliability. High-quality rock-wool insulation helps reduce heat loss and support energy-efficient operation, while stainless-steel heating elements provide durable heating performance. Double doors, over-temperature protection, and 11 shelves with 30 kg load capacity per shelf make it a practical choice for large batch processing and long-term professional use.
Why Choose Labotemp Forced Air Drying Oven FOV-30?
✓ Large Capacity: 1300L chamber for high-volume thermal processing.
✓ Uniform Heating: Forced-air circulation provides ±3% temperature uniformity.
✓ Precise Control: PID control with PT100 sensor, timer, and LCD display.
| General Specifications | |
|
Cycle Mode : Fan – Forced Circulation Cycle Mode |
Fan – Forced Circulation |
|
Inner Chamber Material : Stainless Steel Inner Chamber Material |
Stainless Steel |
|
Outer Shell : Galvanized Sheet Electrostatic Spraying Exterior Outer Shell |
Galvanized Sheet Electrostatic Spraying Exterior |
|
Insulation Layer : High Quality Rock Wool Board (with CE) Insulation Layer |
High Quality Rock Wool Board (with CE) |
|
Heater : Stainless Steel Heating Tube Heater |
Stainless Steel Heating Tube |
|
Exhaust Hole : On Top or Side Exhaust Hole |
On Top or Side |
|
Temperature Control Mode : PID Intelligent Control or Multi-Segment Programmable Control (Optional) Temperature Control Mode |
PID Intelligent Control or Multi-Segment Programmable Control (Optional) |
|
Temperature Setting Mode : Touch Button Setting Temperature Setting Mode |
Touch Button Setting |
|
Temperature Display Mode : LCD Digital Display Temperature Display Mode |
LCD Digital Display |
|
Operation Function : Fixed Temperature Operation, Timing Function, Auto Stop Operation Function |
Fixed Temperature Operation, Timing Function, Auto Stop |
|
Additional Function : Temperature Deviation Correction, Menu Locked, Power-Off Memory Additional Function |
Temperature Deviation Correction, Menu Locked, Power-Off Memory |
|
Sensor : PT100 Sensor |
PT100 |
|
Safety Device : One Key to Start Overheat Power Off Safety Device |
One Key to Start Overheat Power Off |
|
Power Supply : 380 V- 50/60HZ Power Supply |
380 V- 50/60HZ |
|
Power Rating : 12kW Power Rating |
12kW |
|
Volume : 1870L Volume |
1870L |
|
Maximum Shelf Number : 11 Maximum Shelf Number |
11 |
|
Load Per Rack : 30 kg Load Per Rack |
30 kg |
|
Shelf Space : 100 mm Shelf Space |
100 mm |
| Thermal Parameters | |
|
Temperature Range : RT + 10–300°C Temperature Range |
RT + 10–300°C |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Motion : ±1°C Temperature Motion |
±1°C |
|
Temperature Uniformity : ±3% Temperature Uniformity |
±3% |
|
Timer : 0–9999 min (with Timing Wait Function) Timer |
0–9999 min (with Timing Wait Function) |
| Physical Dimensions | |
|
Inner Chamber Size (W × L × H) : 1200 × 1200 × 1300 mm Inner Chamber Size (W × L × H) |
1200 × 1200 × 1300 mm |
|
Exterior Size (W × L × H) : 1330× 1400× 1670 mm Exterior Size (W × L × H) |
1330× 1400× 1670 mm |
|
Packing Size (W × L × H) : 1550× 1500 × 1890 mm Packing Size (W × L × H) |
1550× 1500 × 1890 mm |
|
Net Weight : 480KG Net Weight |
480KG |
