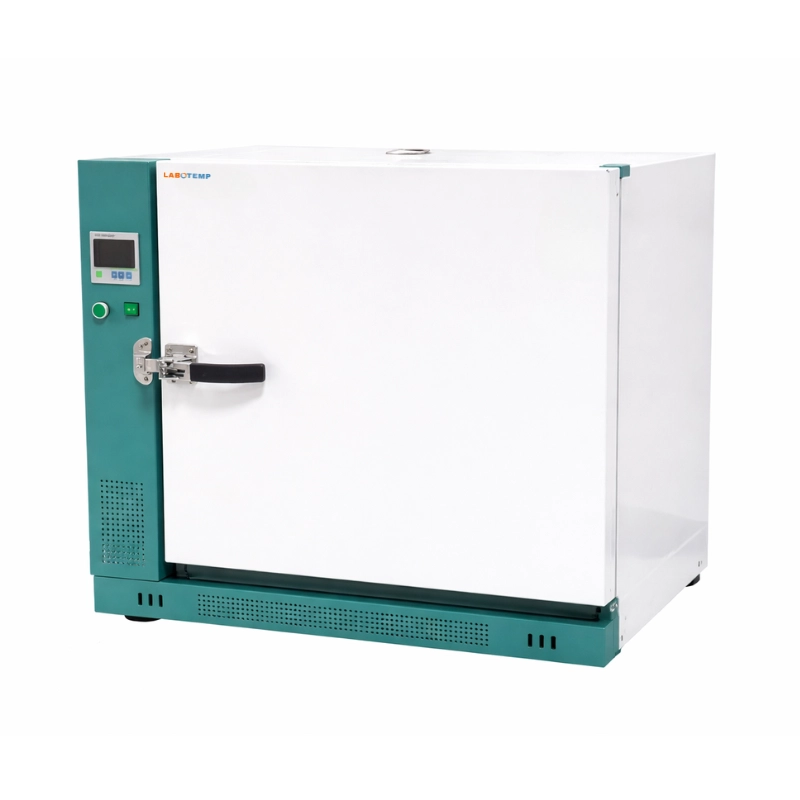

Labotemp Hot Air Oven FOV-18 manufactured by a trusted laboratory oven manufacturer, is a 150 L forced-convection hot air oven engineered for repeatable drying, curing, thermal aging and component conditioning. It operates from RT+20°C to 500°C with ±0.5°C precision; the PID intelligent controller and dual-LCD make setpoint adjustment and monitoring fast and intuitive.

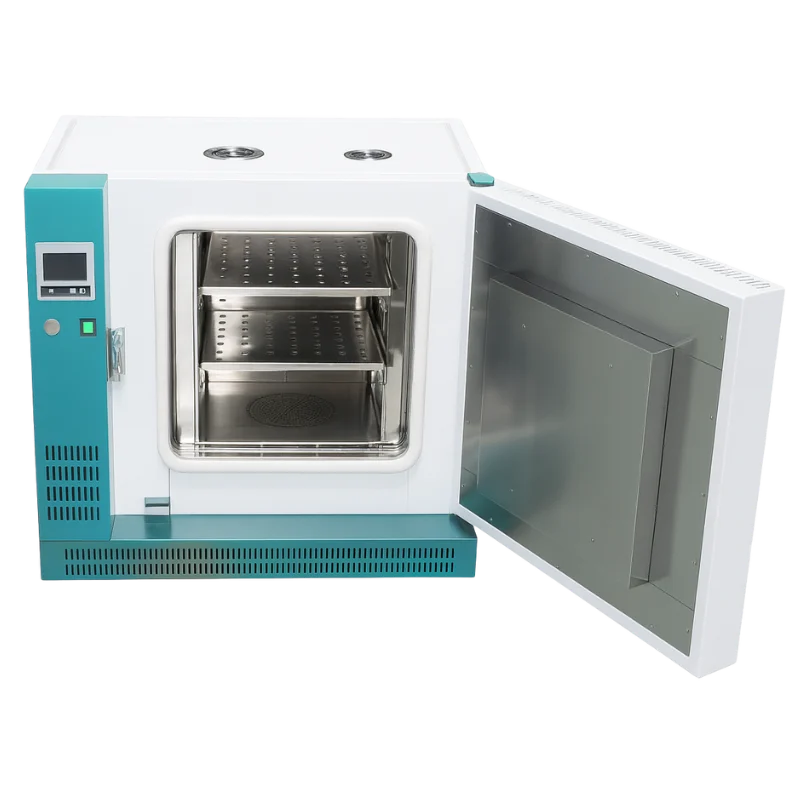

This lab oven with SUS316L chamber and alumina silicate fibre insulation provide robust corrosion resistance and excellent heat retention, while a 4.8 kW heater and controlled airflow ensure fast heat-up and consistent temperature distribution across batches. Safety features include a programmable 0–9999 min timer and over-temperature alarm, making the unit well suited to electronics, aerospace, chemical labs, materials testing and small production runs.
Why Choose Labotemp Hot Air Oven FOV-18?
✓ Trusted Manufacturer: Built by an experienced laboratory oven maker, backed by industrial design and consistent manufacturing quality.
✓ Large-Volume Performance: 150 L capacity with powerful 4.8 kW heating and forced convection delivers fast, uniform processing for batch work.
✓ Safety & Precise Control: PID dual-LCD control, long timer range and over-temp protection ensure repeatable results and safe operation.
|
Model NO. : FOV-18 Model NO. |
FOV-18 |
|
Heating Method : Forced Convection Heating Method |
Forced Convection |
|
Temp Range : RT+20–500°C Temp Range |
RT+20–500°C |
|
Accuracy : ±0.5°C Accuracy |
±0.5°C |
|
Uniformity : 2.50% Uniformity |
2.50% |
|
Inner Chamber : SUS316L Inner Chamber |
SUS316L |
|
Insulation : Alumina silicate fibre Insulation |
Alumina silicate fibre |
|
Heater Power : 4.8 kW Heater Power |
4.8 kW |
|
Controller : PID Intelligent Controller |
PID Intelligent |
|
Display : Dual LCD Display |
Dual LCD |
|
Timing : 0–9999 min Timing |
0–9999 min |
|
Safety : Over-temp alarm Safety |
Over-temp alarm |
|
Chamber Size : 500×500×600mm Chamber Size |
500×500×600mm |
|
Volume : 150L Volume |
150L |
|
Power Supply : AC 380V 50Hz / 240V 60Hz Power Supply |
AC 380V 50Hz / 240V 60Hz |
|
Current : 7.3A Current |
7.3A |
|
Net Weight : 80kg Net Weight |
80kg |
|
Gross Weight : 95kg Gross Weight |
95kg |
|
Package Size : 1100x860x1250mm Package Size |
1100x860x1250mm |
