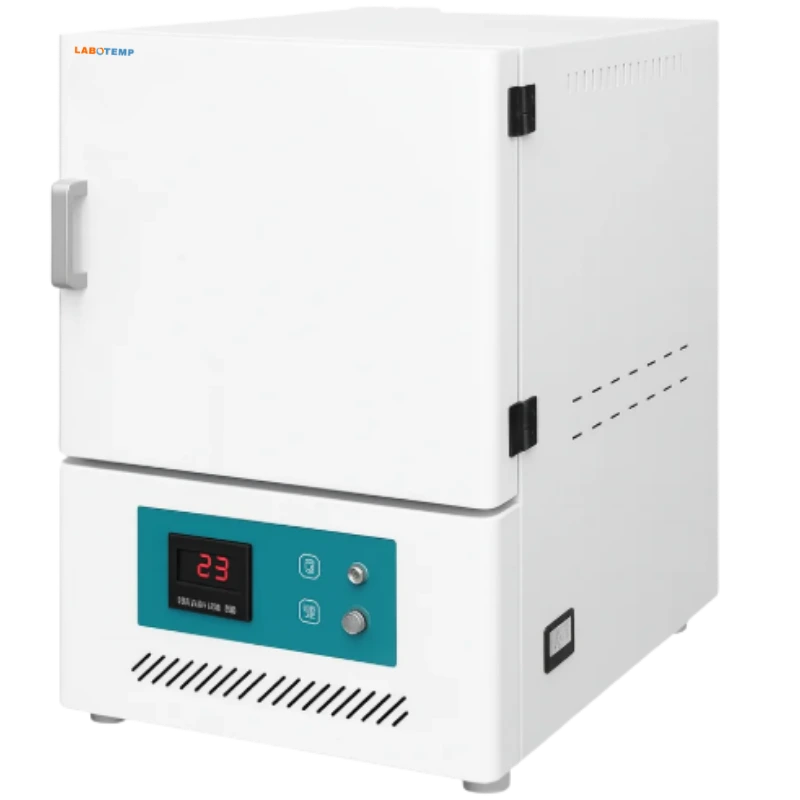

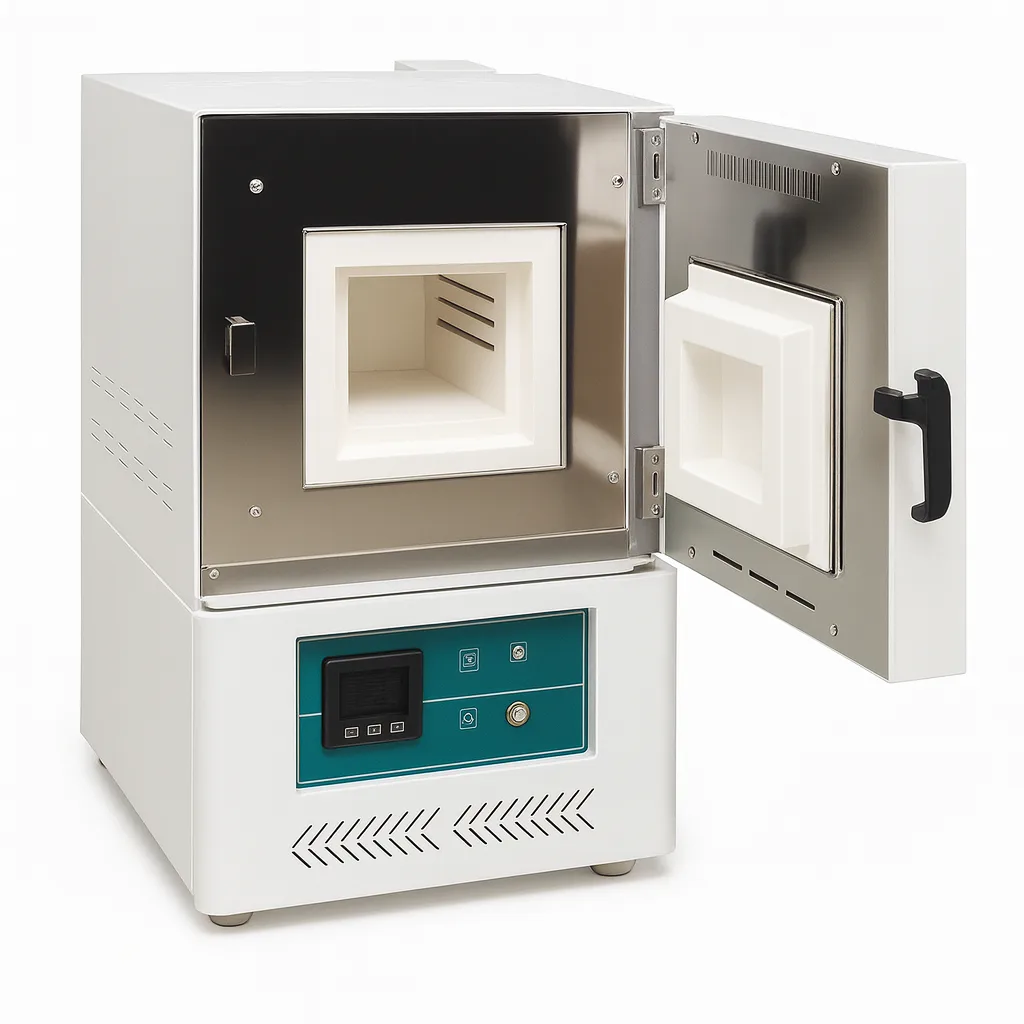

Labotemp Muffle Furnace FMU-10 is an ISO & CE-certified high-capacity muffle furnace engineered for demanding high-temperature laboratory and industrial applications up to 1600°C (1500°C continuous). This 36 L electric muffle furnace combines a polycrystalline mullite fiber chamber, alumina-fiber insulation and a cold-rolled steel shell to minimise heat loss and extend service life. A powerful 15 kW MoSi₂ heating system delivers rapid heat-up (<40 min) and excellent uniformity. The advanced 7″ touchscreen programmable PID controller with S-type sensor provides 1°C resolution and ±1°C accuracy; programmable cycles, real-time curve display and robust safety protections ensure repeatable results for precision workflows.
Designed as a high-efficiency furnace for ceramic sintering, metallurgy, crystal growth, metal annealing, thermal analysis, ashing and heat treatment, FMU-10 suits universities, research institutes, industrial R&D and QC labs. Built for low maintenance and energy efficiency, this digital muffle furnace is supplied with technical documentation and manufacturer support from an experienced furnace manufacturer and furnace supplier.
Why choose Muffle Furnace FMU-10?
✓ Large capacity & power: 36 L chamber with 15 kW heating for higher throughput.
✓ Precise digital control: 7″ touchscreen PID, S-type sensor (±1°C, 1°C res.).
✓ Fast, uniform heating: MoSi₂ rods, <40 min ramp and low thermal gradients.
✓ High efficiency & durability: Mullite chamber, alumina insulation and robust shell.
|
Model NO. : FMU-10 Model NO. |
FMU-10 |
|
Volume : 36 L Volume |
36 L |
|
Temperature Range : 1600℃ (1500℃ continuous) Temperature Range |
1600℃ (1500℃ continuous) |
|
Temperature Resolution : 1℃ Temperature Resolution |
1℃ |
|
Temperature Accuracy : ±1℃ Temperature Accuracy |
±1℃ |
|
Current Rating : AC 380V Current Rating |
AC 380V |
|
Power Rating : 15kW Power Rating |
15kW |
|
Rise Time : <40 min Rise Time |
<40 min |
|
Chamber Material : Polycrystalline Mullite fiber Chamber Material |
Polycrystalline Mullite fiber |
|
Outer Shell : Cold-rolled steel Outer Shell |
Cold-rolled steel |
|
Insulation Layer : Alumina fiber Insulation Layer |
Alumina fiber |
|
Heater : MoSi₂ Rod Heater |
MoSi₂ Rod |
|
Exhaust Hole : ODφ22 IDφ18 Exhaust Hole |
ODφ22 IDφ18 |
|
Controller : 7” Touchscreen PL Controller |
7” Touchscreen PL |
|
Temperature Setting Mode : Touch Temperature Setting Mode |
Touch |
|
Temperature Display Mode : Touch/LED Temperature Display Mode |
Touch/LED |
|
Timer : 0–9999 min Timer |
0–9999 min |
|
Operation Function : Constant temp or program Operation Function |
Constant temp or program |
|
Additional Function : Start/stop button; sensor alarm; overshoot setting; correction Additional Function |
Start/stop button; sensor alarm; overshoot setting; correction |
|
Sensor : S-type Sensor |
S-type |
|
Safety Device : Overtemperature; leakage; door-opening protection Safety Device |
Overtemperature; leakage; door-opening protection |
|
Chamber Size (mm) : 300×400×300 Chamber Size (mm) |
300×400×300 |
|
Exterior Size (mm) : 750×1065×1250 Exterior Size (mm) |
750×1065×1250 |
|
Packing Size (mm) : 910×1265×1460 Packing Size (mm) |
910×1265×1460 |
|
NW/GW (kg) : 270/320 NW/GW (kg) |
270/320 |
|
Optional Type : Air inlet Optional Type |
Air inlet |
