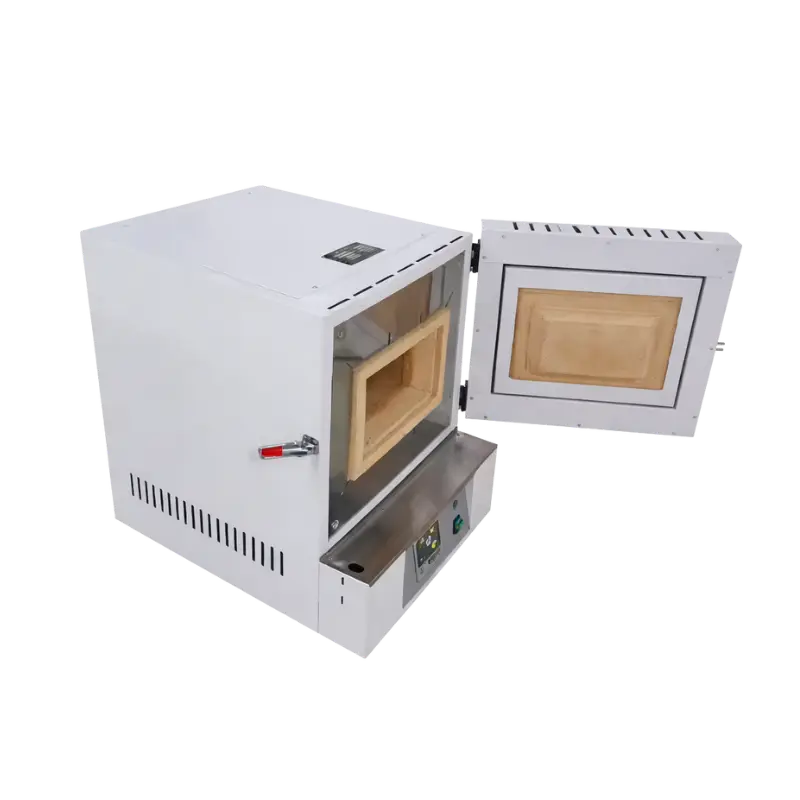

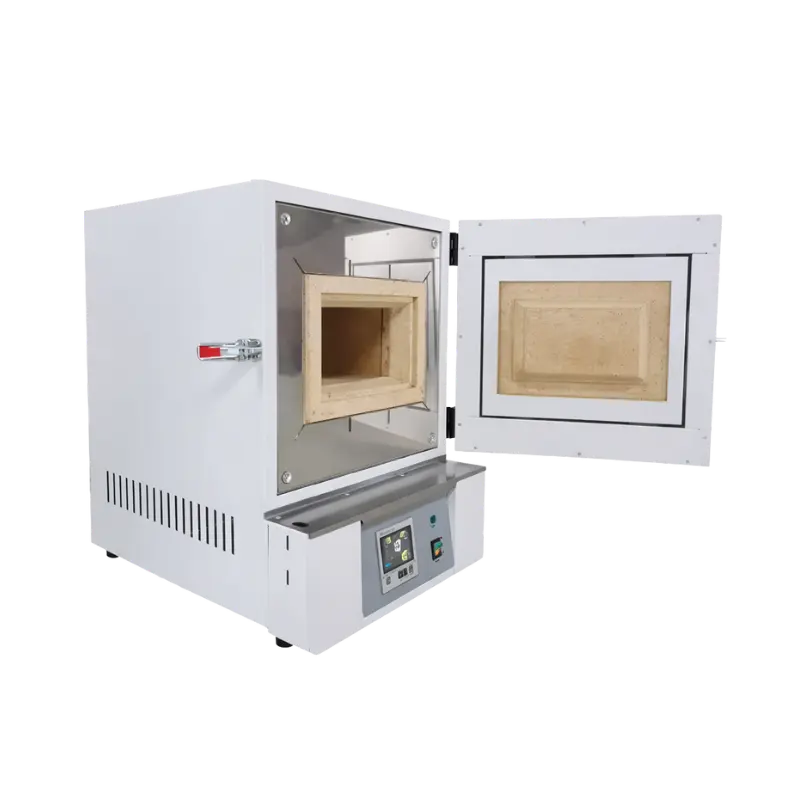

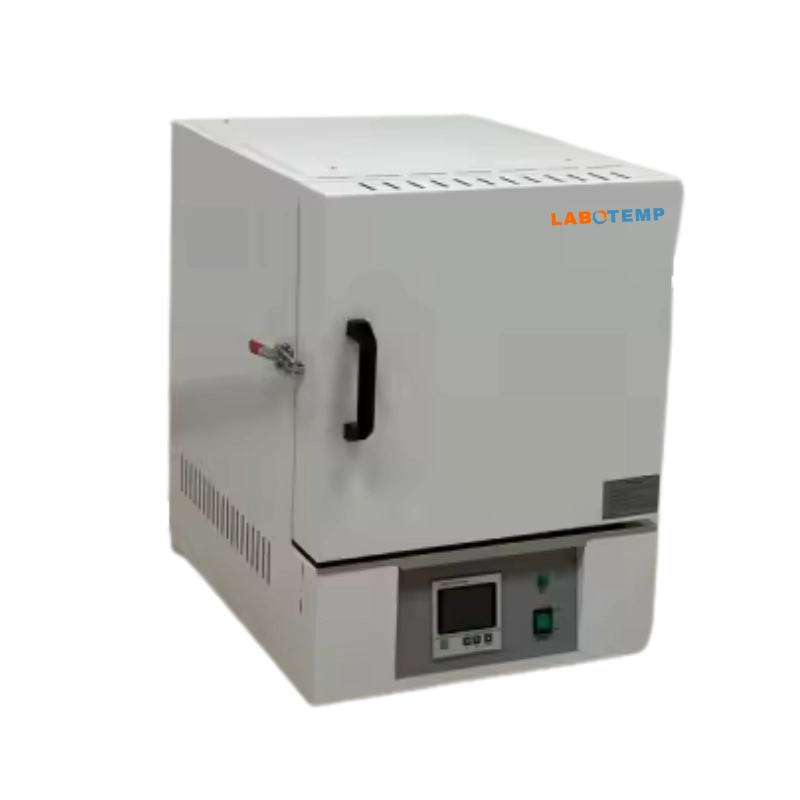

Labotemp Muffle Furnace FMU-06 is an ISO & CE-certified electric muffle furnace engineered for high-capacity laboratory heating up to 1200°C. This large 16 L lab muffle furnace features a robust aluminum-silicate insulated chamber and four-sided heating to deliver uniform temperature distribution for consistent, repeatable results. A digital double-row PID controller with K-type thermocouple provides 1°C resolution and ±5°C stability, while touch-key temperature setting and automatic constant-temperature mode ensure simple and reliable operation.
Designed for research institutes, material testing labs and industrial quality control, this high-efficiency furnace supports ashing, calcination, sintering, heat treatment, thermal analysis and sample preparation. Manufactured by Labotemp, a trusted muffle furnace manufacturer and laboratory furnace supplier, FMU-06 offers durable construction, low maintenance and dependable long-term performance.
Why choose Muffle Furnace FMU-06?
✓ Certified Quality: ISO & CE compliant laboratory furnace
✓ Precise Digital Control: PID controller with K-type sensor (±5°C)
✓ Large Capacity: 16 L chamber for high-volume sample processing
✓ Uniform Temperature: Four-sided heating for consistent results
|
Maximum Temperature : 1200°C Maximum Temperature |
1200°C |
|
Chamber Volume : 16 L Chamber Volume |
16 L |
|
Rated Power : 10 kW Rated Power |
10 kW |
|
Time from Room Temp. to Max Temp. (min) : 80 Time from Room Temp. to Max Temp. (min) |
80 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Exhaust Chimney : Stainless steel exhaust Exhaust Chimney |
Stainless steel exhaust |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5°C Temperature Fluctuation |
±5°C |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC380V / 12A Power Supply / Rated Current |
AC380V / 12A |
|
Internal dimension : 400×250×160mm Internal dimension |
400×250×160mm |
|
External dimension : 750×580×800mm External dimension |
750×580×800mm |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing Dimension : 870×630×790 mm Packing Dimension |
870×630×790 mm |
|
Net Weight : 140kg Net Weight |
140kg |
|
Gross Weight : 160kg Gross Weight |
160kg |
|
Maximum Continuous Operating Temperature : 1100℃ Maximum Continuous Operating Temperature |
1100℃ |
