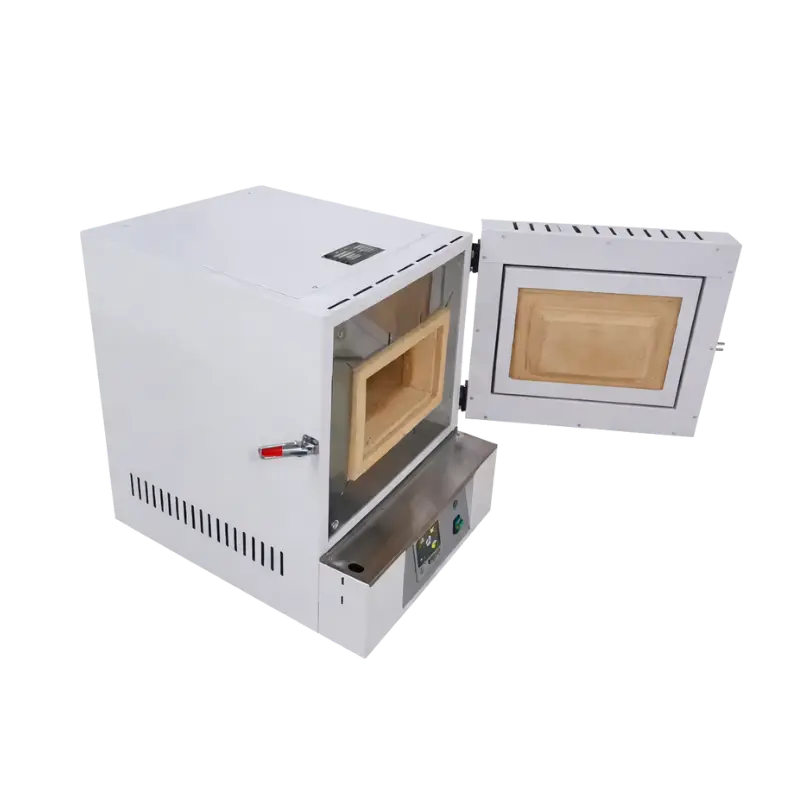

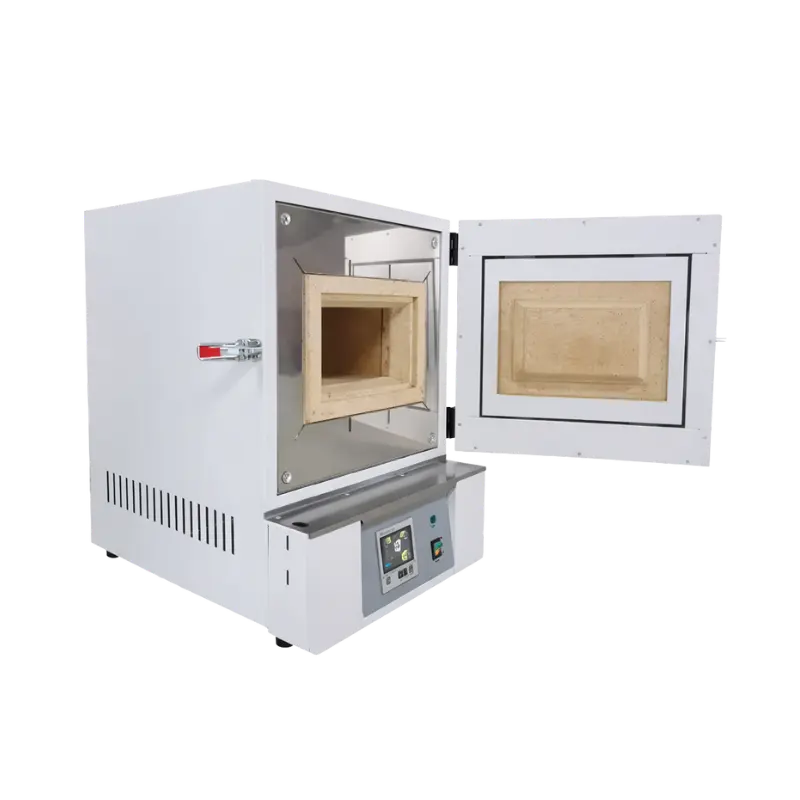

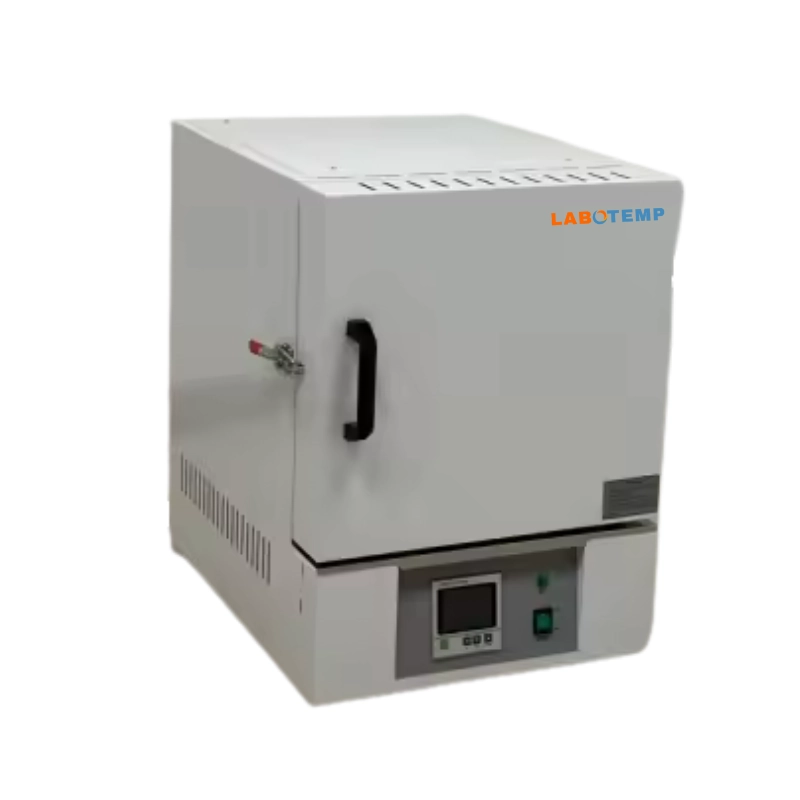

Labotemp Muffle Furnace FMU-05 is an ISO & CE-certified electric muffle furnace designed for precise and efficient laboratory heating up to 1200°C. This 7 L lab muffle furnace features a durable aluminum-silicate insulated chamber with four-sided heating for uniform temperature distribution and consistent results. A digital double-row PID controller with K-type thermocouple provides 1°C resolution and ±5°C temperature stability, while touch-key temperature setting and automatic constant-temperature mode ensure simple, repeatable operation.
Ideal for ceramic processing, metal annealing, material testing, thermal decomposition, ashing, calcination, sintering and heat treatment, FMU-05 is a high-efficiency furnace suited for research institutes, industrial quality control and educational laboratories. Manufactured by Labotemp, a trusted muffle furnace manufacturer and laboratory furnace supplier, FMU-05 is engineered for durability, low maintenance and long-term reliable performance.
Why choose Muffle Furnace FMU-05?
✓ Certified Quality: ISO & CE compliant laboratory furnace
✓ Precise Digital Control: PID controller with K-type sensor (±5°C)
✓ Trusted Manufacturer: Designed and supplied by an experienced furnace manufacturer
|
Maximum Temperature : 1200°C Maximum Temperature |
1200°C |
|
Chamber Volume : 7 L Chamber Volume |
7 L |
|
Rated Power : 5 kW Rated Power |
5 kW |
|
Time from Room Temp. to Max Temp. (min) : 80 Time from Room Temp. to Max Temp. (min) |
80 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5°C Temperature Fluctuation |
±5°C |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC220V 50Hz / 23A Power Supply / Rated Current |
AC220V 50Hz / 23A |
|
Internal dimension : 300×200×120mm Internal dimension |
300×200×120mm |
|
External dimension : 590×460×640mm External dimension |
590×460×640mm |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing Dimension : 800x600x700mm Packing Dimension |
800x600x700mm |
|
Gross Weight : 85kg Gross Weight |
85kg |
|
Net Weight : 75kg Net Weight |
75kg |
|
Maximum Continuous Operating Temperature : 1100℃ Maximum Continuous Operating Temperature |
1100℃ |
