Tube Furnace 1200°C | 350 mm Heating Zone FMT-03

Tube Furnace 1200°C | 350 mm Heating Zone FMT-03

Name: Tube Furnace 1200°C | 350 mm Heating Zone FMT-03
Brand: Labotemp
SKU: FMT-03
Price: 4177.00 USD
Availability: InStock
Rating: 4.7 (782 reviews)

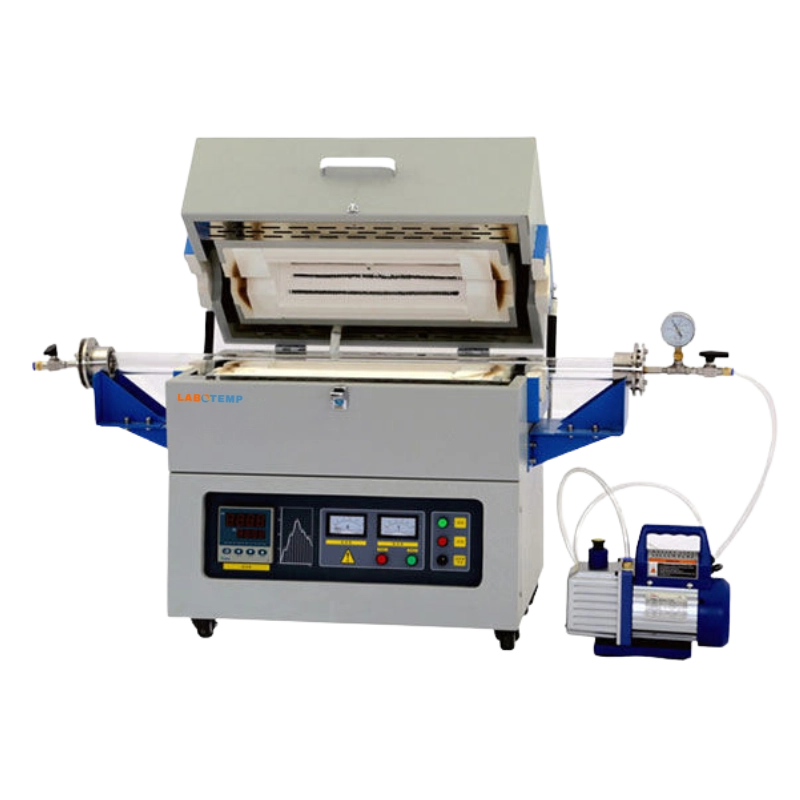

Labotemp Vacuum Tube Furnace FMT-03 is a precision laboratory tube furnace engineered for uniform heat treatment up to 1200°C (working ≤1100°C). It features a ∮40 mm high-purity quartz tube, a 350 mm heating zone and a 1000 mm total tube length. Resistance-wire heating elements combined with advanced PID control and 30-segment programmable temperature curves deliver ±1°C accuracy and ±5°C uniformity.

Manufactured by an experienced furnace manufacturer and supplied through authorised furnace suppliers, the FMT-03 vacuum tube furnace is ideal for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. This vacuum tubular furnace configuration supports controlled-atmosphere processing with optional accessories, making it a reliable lab furnace and electric tube furnace for laboratory and industrial applications.

Why choose Labotemp Tube Furnace FMT-03?
✓ Precision Control: Proven PID thermal control with programmable profiles for stable and repeatable results.
✓ Industry Authority: Developed by a leading furnace manufacturer with deep application expertise.
✓ Robust Design: Durable, compact vacuum tubular furnace built for research and production use.

$4177

Datasheet

Maximum Temperature : 1200°C Maximum Temperature	1200°C
Standard Heating Zone Length (mm) : 350 Standard Heating Zone Length (mm)	350
Chamber Size(mm) : 40*350 Chamber Size(mm)	40*350
Standard Tube Diameter (mm) : ∮40 Standard Tube Diameter (mm)	∮40
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
External Size : 650×420×665 mm External Size	650×420×665 mm
Working Temperature : ≤1100 Working Temperature	≤1100
Heating Rate (℃/min) : 0 ~ 20℃/min Heating Rate (℃/min)	0 ~ 20℃/min
Temperature Accuracy : ±1 Temperature Accuracy	±1
Temperature Uniformity : ±5 Temperature Uniformity	±5
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Heating Element : Resistance Wire Heating Element	Resistance Wire
Thermocouple Type : K Type Thermocouple Type	K Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 70kg Net Weight	70kg
Gross weight : 90kg Gross weight	90kg

Uniform Heat Expert ➤ Uniform Heat Expert
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments time temperature curve can be set arbitrarily ➤ 30 segments time temperature curve can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications ➤ Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
