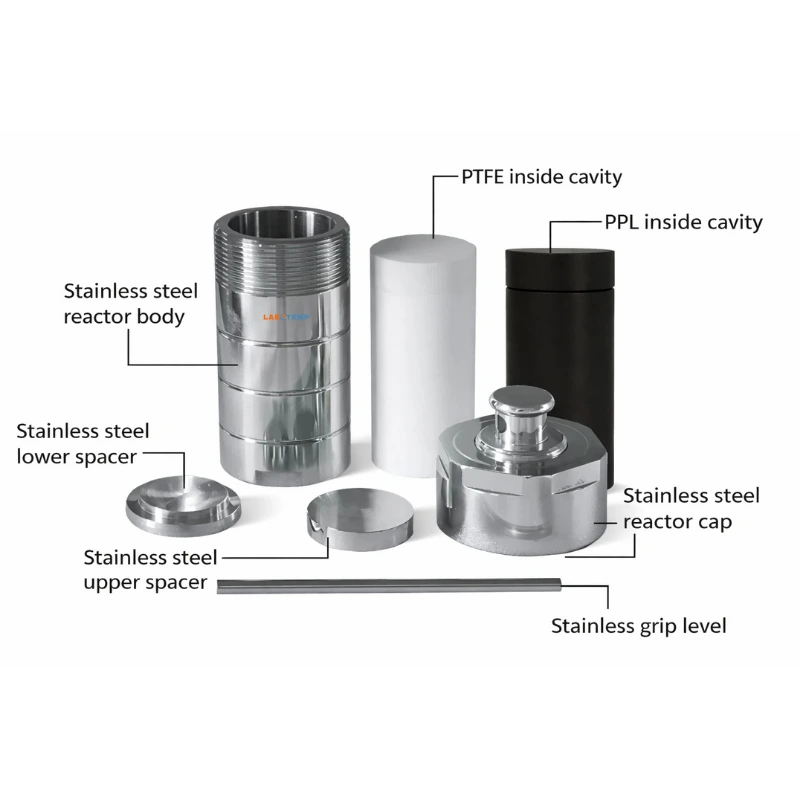

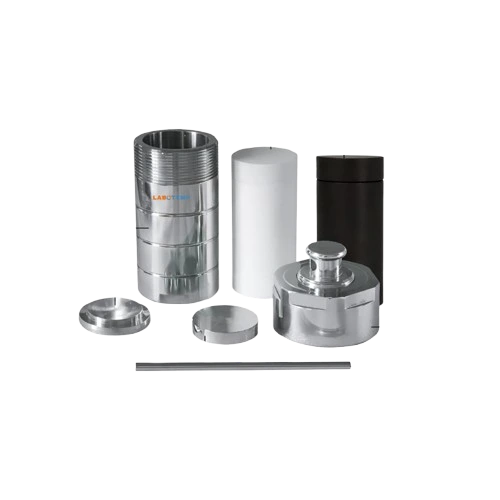

Labotemp Hydrothermal Reactor Autoclave HRA-02 is a compact, TEFLON-lined hydrothermal autoclave reactor engineered for reliable hydrothermal synthesis and pressure digestion. The 50 mL kettle features a 316 stainless steel outer body with PTFE lining, 6.5 mm wall thickness, and secure gasketed lid—built for corrosive acid/alkali environments. Rated up to 200°C (max 250°C) and 3.0 MPa, it enables rapid, nondestructive dissolution of insoluble samples for trace-element and catalytic hydrothermal reactor workflows.
Ideal for petrochemical, biomedical, materials and environmental labs, this hydrothermal synthesis autoclave reactor speeds sample pretreatment (heavy metals, pesticides, organics) while reducing contamination and replacing platinum crucibles for high-purity analyses. Compact, easy to operate and safe, it supports accurate, reproducible results and low contamination risk.
Why choose Labotemp Hydrothermal Reactor Autoclave HRA-02?
✓ Lab efficiency: 50 mL capacity for hydrothermal synthesis and sample preparation
✓ Trusted build: Designed for durability, safety, and consistent hydrothermal performance
✓ Compliance & safety: ISO 13485 & CE certified, rated to 250°C and 3.0 MPa for secure hydrothermal digestion.
| Reactor & Operating Performance | |
|
Capacity : 50 mL Capacity |
50 mL |
|
Maximum Temperature : 250°C Maximum Temperature |
250°C |
|
Maximum Pressure : 3.0 MPa Maximum Pressure |
3.0 MPa |
|
Kettle Lid Height : 40 mm Kettle Lid Height |
40 mm |
|
Kettle Body Height : 93 mm Kettle Body Height |
93 mm |
|
Kettle Body Diameter : 53 mm Kettle Body Diameter |
53 mm |
|
Kettle Body Inner Diameter : 40 mm Kettle Body Inner Diameter |
40 mm |
|
Kettle Body Wall Thickness : 6.5 mm Kettle Body Wall Thickness |
6.5 mm |
| PTFE Liner & Construction | |
|
Liner Material : PTFE Liner Material |
PTFE |
|
Liner Height : 78 mm Liner Height |
78 mm |
|
Liner Thickness : 5 mm Liner Thickness |
5 mm |
|
Liner Inner Diameter : 40 mm Liner Inner Diameter |
40 mm |
|
Kettle Body Material : 316 Stainless Steel Kettle Body Material |
316 Stainless Steel |
|
Lower Gasket Thickness : 10 mm Lower Gasket Thickness |
10 mm |
|
Upper Gasket Thickness : 10 mm Upper Gasket Thickness |
10 mm |
|
Grip Bar : 8 × 120 mm Grip Bar |
8 × 120 mm |
| Dimensions & Weight | |
|
Overall Height : 140 mm Overall Height |
140 mm |
|
Product Weight : 1.45 kg Product Weight |
1.45 kg |
|
Packing Dimensions : 13.2 × 11 × 17.6 cm Packing Dimensions |
13.2 × 11 × 17.6 cm |
|
Gross Weight : 3 kg Gross Weight |
3 kg |
Thickness of Upper Gasket: 8 mm
Thickness of Lower Gasket: 8 mm
Sterilization Parameters:
Product Weight: 0.95 kg
Upper Gasket Thickness: 10 mm
Reactor & Operating Performance:
PTFE Liner & Construction:
Product Weight: 1.45 kg
Sterilization Parameters:
Product Weight: 2.25 kg
Packaging Information:
Operating Temperature: 200°C
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 5.65 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.4 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.5 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 7.45 kg
Sealing Design: Leak Proof
Safety & Construction:
Safe Working Temperature: 220 °C
Recommended Heating and Cooling Rate: ≤5 °C/min
Wetted Material: Hastelloy
Venting System: Deflation / Vent Valve
Valve Material: 316L Stainless Steel
Temperature Monitoring: Temperature Probe
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 53 mm
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 64 mm
Vessel Wall Thickness: 5.5 mm
Vessel Material: 316L Stainless Steel
Vessel Inner Diameter: 27 mm
Vessel Height: 64 mm
