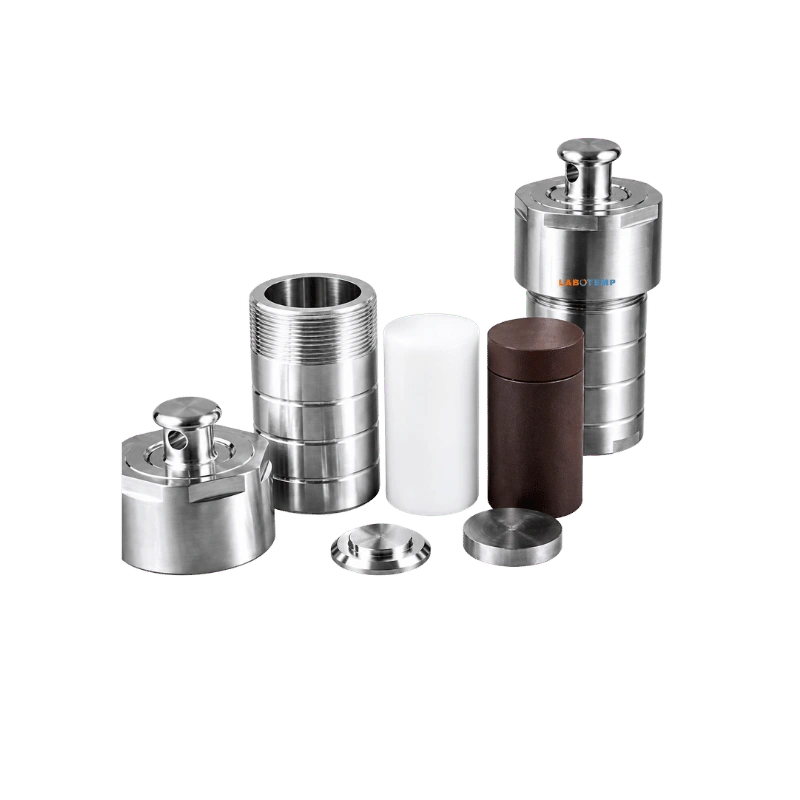

Hydrothermal Reactor Autoclave HRA-11

Name: Hydrothermal Reactor Autoclave HRA-11
Brand: Labotemp
SKU: HRA-11
Price: 2275.00 USD
Availability: InStock
Rating: 4.8 (958 reviews)

Labotemp Hydrothermal Reactor Autoclave HRA-11 provides a compact 10 mL reaction vessel for hydrothermal synthesis, high pressure digestion, sample pretreatment, and small scale chemical research. Constructed with a durable 316L stainless steel vessel and PPL liner, it offers a chemically resistant reaction environment for controlled processing under elevated temperature and pressure. The 10 mL capacity makes this hydrothermal reactor suitable for experiments requiring small sample volumes while its compact 48 mm vessel diameter and 0.54 kg product weight allow convenient handling and efficient laboratory use.

The HRA-11 features a 64 mm vessel height, 27 mm vessel inner diameter, 5.5 mm vessel wall thickness, and 55 mm PPL liner height with a 5 mm liner thickness. Its sealed vessel design supports controlled hydrothermal reactions and sample digestion while the removable liner simplifies sample loading, cleaning, and routine maintenance. Suitable for material synthesis, crystal growth, catalyst research, trace element analysis, environmental testing, geological studies, biomedical research, food testing, and other laboratory applications requiring controlled high temperature and pressure reactions.

Why Choose Labotemp Hydrothermal Reactor Autoclave HRA-11?

✓ 10 mL Reaction Capacity: Compact volume supports small scale hydrothermal synthesis and laboratory sample preparation.
✓ 316L Stainless Steel Vessel: Durable vessel construction provides reliable performance under demanding laboratory conditions.
✓ PPL Liner: Chemically resistant liner helps contain samples and simplifies cleaning between reaction cycles.

$2275

Datasheet

Reactor & Operating Performance
Capacity : 10 mL Capacity	10 mL
Maximum Temperature : 250 °C Maximum Temperature	250 °C
Maximum Pressure : 3.0 MPa Maximum Pressure	3.0 MPa
Vessel Construction
Vessel Material : 316L Stainless Steel Vessel Material	316L Stainless Steel
Vessel Height : 64 mm Vessel Height	64 mm
Vessel Diameter : 48 mm Vessel Diameter	48 mm
Vessel Inner Diameter : 27 mm Vessel Inner Diameter	27 mm
Vessel Wall Thickness : 5.5 mm Vessel Wall Thickness	5.5 mm
PPL Liner
Liner Material : PPL Liner Material	PPL
Liner Height : 55 mm Liner Height	55 mm
Liner Thickness : 5 mm Liner Thickness	5 mm
Liner Diameter : 27 mm Liner Diameter	27 mm
Dimensions & Weight
Overall Height : 74 mm Overall Height	74 mm
Product Weight : 0.54 kg Product Weight	0.54 kg

3.0 MPa Pressure Rating ➤ 3.0 MPa Pressure Rating
316L stainless steel vessel provides durable construction and strong resistance to demanding reaction conditions ➤ 316L stainless steel vessel provides durable construction and strong resistance to demanding reaction conditions
PPL liner included with the 10 mL configuration for controlled reaction containment and convenient sample handling ➤ PPL liner included with the 10 mL configuration for controlled reaction containment and convenient sample handling
High temperature capability up to 250°C supports elevated temperature hydrothermal reactions within the rated operating conditions ➤ High temperature capability up to 250°C supports elevated temperature hydrothermal reactions within the rated operating conditions
High pressure capability up to 3.0 MPa supports controlled closed vessel reactions ➤ High pressure capability up to 3.0 MPa supports controlled closed vessel reactions
48 mm vessel diameter and 74 mm overall height provide a compact design for convenient laboratory handling ➤ 48 mm vessel diameter and 74 mm overall height provide a compact design for convenient laboratory handling
0.54 kg product weight makes the 10 mL reactor easy to handle and position during laboratory workflows ➤ 0.54 kg product weight makes the 10 mL reactor easy to handle and position during laboratory workflows
Upper and lower gasket arrangement supports reliable sealing during closed vessel operation ➤ Upper and lower gasket arrangement supports reliable sealing during closed vessel operation
Pressure cover with grip bar allows the reactor to be securely tightened before operation ➤ Pressure cover with grip bar allows the reactor to be securely tightened before operation
Suitable for rapid digestion of difficult to dissolve, insoluble, and volatile samples ➤ Suitable for rapid digestion of difficult to dissolve, insoluble, and volatile samples
Supports hydrothermal synthesis, high pressure digestion, sample pretreatment, and chemical reaction studies ➤ Supports hydrothermal synthesis, high pressure digestion, sample pretreatment, and chemical reaction studies
Suitable for trace and heavy metal sample dissolution, catalyst preparation, and material synthesis ➤ Suitable for trace and heavy metal sample dissolution, catalyst preparation, and material synthesis
Useful for environmental, food, geological, petrochemical, biomedical, chemical, and research laboratories ➤ Useful for environmental, food, geological, petrochemical, biomedical, chemical, and research laboratories
Recommended filling volume of 70% to 80% helps maintain appropriate reaction space inside the liner ➤ Recommended filling volume of 70% to 80% helps maintain appropriate reaction space inside the liner
Recommended heating rate of ≤5°C/min helps minimize sudden pressure increases during temperature changes ➤ Recommended heating rate of ≤5°C/min helps minimize sudden pressure increases during temperature changes

Hydrothermal Synthesis: Small scale synthesis of materials under controlled temperature and pressure conditions Hydrothermal Synthesis
Small scale synthesis of materials under controlled temperature and pressure conditions
Trace Element Analysis: Used for sample preparation and dissolution before trace and heavy metal analysis Trace Element Analysis
Used for sample preparation and dissolution before trace and heavy metal analysis
Chemical Research: Supports controlled chemical reactions requiring elevated temperature and pressure Chemical Research
Supports controlled chemical reactions requiring elevated temperature and pressure
Environmental Testing: Suitable for preparation and digestion of environmental samples for laboratory analysis Environmental Testing
Suitable for preparation and digestion of environmental samples for laboratory analysis
Geological Research: Used for laboratory treatment and analysis of geological and mineral samples Geological Research
Used for laboratory treatment and analysis of geological and mineral samples
Food Testing: Supports sample preparation and digestion procedures in food and related laboratory testing Food Testing
Supports sample preparation and digestion procedures in food and related laboratory testing
Biomedical Research: Suitable for controlled laboratory reactions and sample preparation in biomedical research Biomedical Research
Suitable for controlled laboratory reactions and sample preparation in biomedical research
