Tube Furnace 1200°C | 205 mm Heating Zone FMT-02

Tube Furnace 1200°C | 205 mm Heating Zone FMT-02

Name: Tube Furnace 1200°C | 205 mm Heating Zone FMT-02
Brand: Labotemp
SKU: FMT-02
Price: 4296.00 USD
Availability: InStock
Rating: 4.8 (785 reviews)

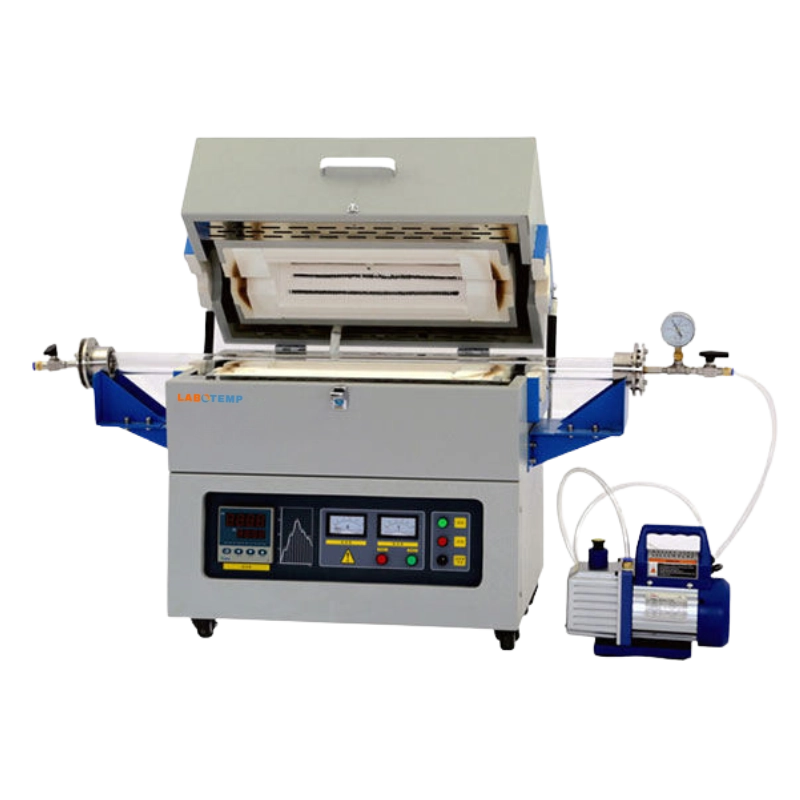

Labotemp Horizontal Tube Furnace FMT-02 is a high-efficiency laboratory tube furnace engineered for precision heat treatment up to 1200°C (working temperature ≤1100°C). Featuring a ∮80 mm high-purity quartz tube with an 80×205 mm chamber and a 205 mm single heating zone, this electric tube furnace delivers excellent thermal stability with ±1°C accuracy and ±5°C uniformity. Equipped with resistance wire heating elements and PID automatic control, it supports 30-segment programmable temperature curves for advanced thermal profiling in research and industrial environments.

Designed for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial preparation, this tubular furnace supports controlled-atmosphere and vacuum tube furnace configurations with optional accessories. Its alumina ceramic fiber chamber ensures high thermal efficiency, while the horizontal tubular furnace design enables easy loading and uniform heating. Compact and robust, FMT-02 is an ideal lab furnace and small tube furnace for high temperature furnaces and laboratory furnace applications.

Why Choose Labotemp Tube Furnace FMT-02?
✓ Precision Thermal Control: PID-controlled heating ensures stable and repeatable high-temperature processing.
✓ Industrial-Grade Construction: Quartz tube and alumina chamber deliver long service life and efficiency.
✓ Research-Ready Performance: Programmable temperature curves with excellent uniformity.

$4296

Datasheet

Maximum Temperature : 1200°C Maximum Temperature	1200°C
Standard Heating Zone Length (mm) : 205 Standard Heating Zone Length (mm)	205
Chamber Size(mm) : 80*205 Chamber Size(mm)	80*205
Standard Tube Diameter (mm) : ∮80 Standard Tube Diameter (mm)	∮80
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
Working Temperature (℃) : ≤1100 Working Temperature (℃)	≤1100
Temperature Accuracy (℃) : ±1 Temperature Accuracy (℃)	±1
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Temperature Uniformity (℃) : ±5 Temperature Uniformity (℃)	±5
Heating Rate (℃/min) : 0 ~ 20℃/min Heating Rate (℃/min)	0 ~ 20℃/min
External Size : 505×420×646 mm External Size	505×420×646 mm
Heating Element : Resistance Wire Heating Element	Resistance Wire
Thermocouple Type : K Type Thermocouple Type	K Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Packaging Dimension : 800 x 600 x 1100 mm Packaging Dimension	800 x 600 x 1100 mm
Accessories Packaging Dimension : 900 x 150 x 160 mm Accessories Packaging Dimension	900 x 150 x 160 mm
Net Weight : 68kg Net Weight	68kg
Gross Weight : 80kg Gross Weight	80kg
Accessories Gross Weight : 7Kg Accessories Gross Weight	7Kg

PID Automatic Control ➤ PID Automatic Control
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments time temperature curve can be set arbitrarily ➤ 30 segments time temperature curve can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications ➤ Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
