Tube Furnace 1200°C | 350 Mm Heating Zone FMT-04

Tube Furnace 1200°C | 350 Mm Heating Zone FMT-04

Name: Tube Furnace 1200°C | 350 Mm Heating Zone FMT-04
Brand: Labotemp
SKU: FMT-04
Price: 4444.00 USD
Availability: InStock
Rating: 4.8 (669 reviews)

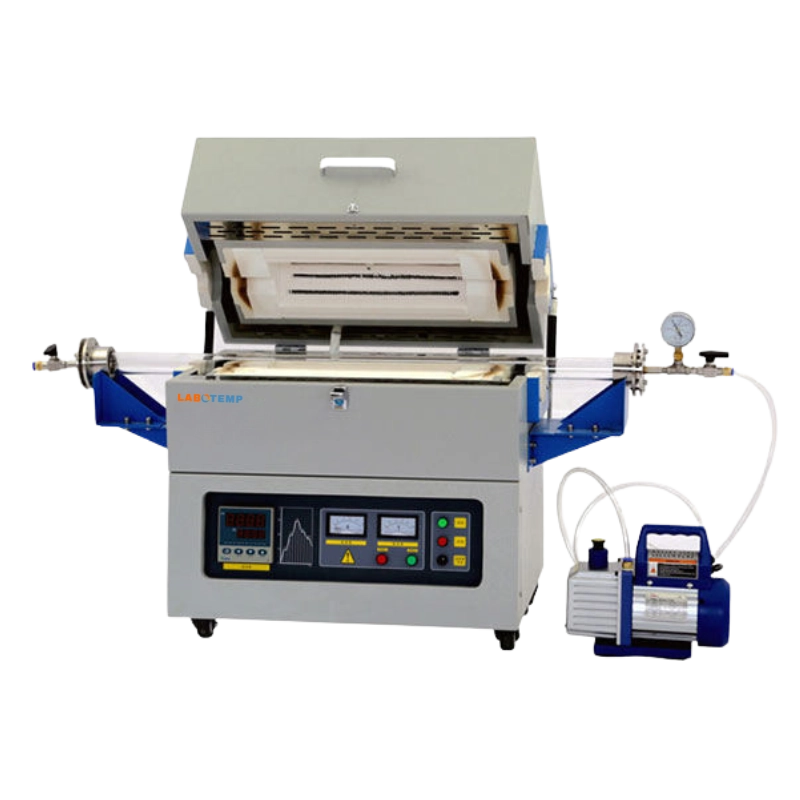

Labotemp Vacuum Tube Furnace FMT-04 is a compact, high-efficiency vacuum tubular furnace for precision heat treatment up to 1200°C (working ≤1100°C). It has a ∮80 mm quartz tube, 350 mm heating zone, 1000 mm total tube length and an 80×350 mm chamber. Resistance-wire heating with PID automatic control and 30-segment programmable profiles deliver ±1°C accuracy and ±5°C uniformity; oxidation-free design and alumina ceramic-fiber insulation ensure thermal efficiency.

Manufactured by an experienced furnace manufacturer and supplied via authorised furnace suppliers, FMT-04 suits material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. The horizontal tubular configuration supports controlled-atmosphere or vacuum operation with optional touchscreen, PC software and safety interlock accessories.

Why choose Labotemp Tube Furnace FMT-04?
✓ Precision Control: PID regulation with 30-segment programming for stable, repeatable thermal profiles.
✓ Oxidation-Free Design: Vacuum tubular construction for clean, contamination-free lab operation.
✓ Manufacturer Authority: Engineered by a certified furnace manufacturer with strict QC.

$4444

Datasheet

Maximum Temperature : 1200°C Maximum Temperature	1200°C
Standard Heating Zone Length (mm) : 350 Standard Heating Zone Length (mm)	350
Chamber Size (mm) : 80×350 Chamber Size (mm)	80×350
Standard Tube Diameter (mm) : ∮80 Standard Tube Diameter (mm)	∮80
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
Working Temperature (℃) : ≤1100 Working Temperature (℃)	≤1100
Temperature Accuracy (℃) : ±1 Temperature Accuracy (℃)	±1
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Temperature Uniformity (℃) : ±5 Temperature Uniformity (℃)	±5
Heating Rate (℃/min) : 0 ~ 20℃/min Heating Rate (℃/min)	0 ~ 20℃/min
External Size : 650×420×665 mm External Size	650×420×665 mm
Heating Element : Resistance Wire Heating Element	Resistance Wire
Thermocouple Type : K Type Thermocouple Type	K Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 70kg Net Weight	70kg
Gross Weight : 90kg Gross Weight	90kg

Oxidation Free  ➤ Oxidation Free
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments time temperature curve” can be set arbitrarily ➤ 30 segments time temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications ➤ Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
