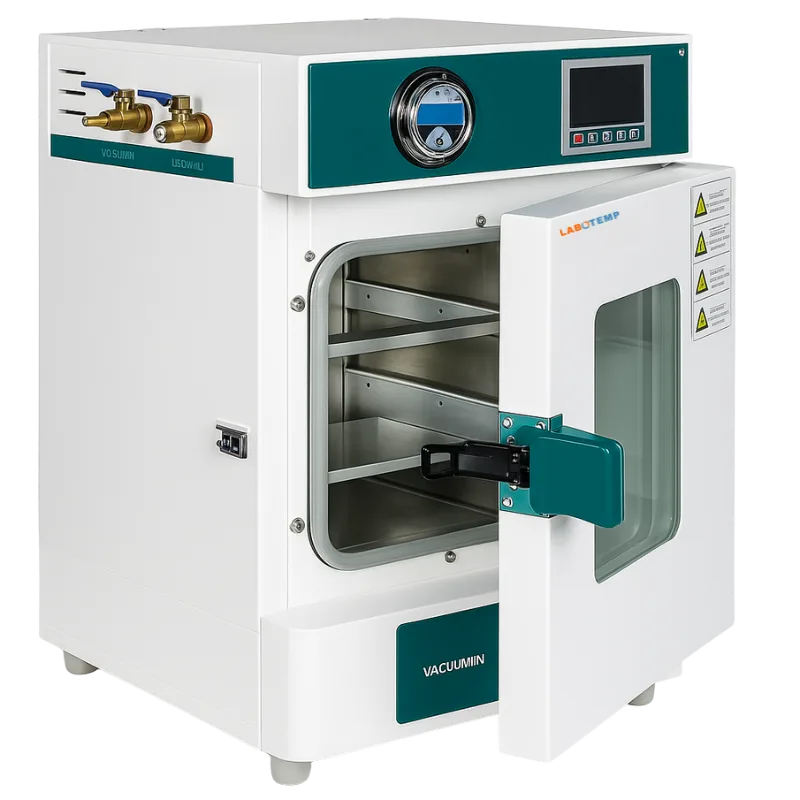

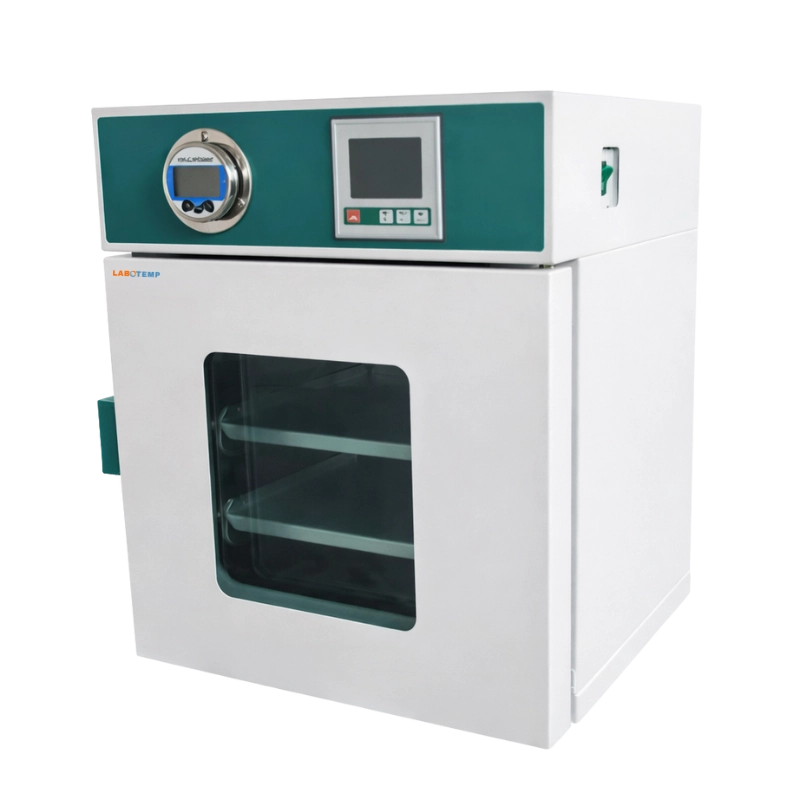

Vacuum Oven FOV-24

Name: Vacuum Oven FOV-24
Brand: Labotemp
SKU: FOV-24
Rating: 4.7 (772 reviews)

Labotemp Vacuum Oven FOV-24 is an ISO and CE compliant laboratory vacuum oven designed for drying heat-sensitive and moisture-sensitive materials. Using four-wall conduction heating with decompression, it minimizes oxidation and contamination during processing. With a temperature range of RT+10°C to 250°C and ±1°C accuracy, it provides stable thermal conditions for delicate applications. The 24 L stainless steel chamber supports controlled drying of powders, electronic components, pharmaceutical samples, and chemical materials in research laboratories and industrial testing environments.

The oven features a durable stainless steel inner chamber combined with alumina silicate fibre insulation to maintain stable internal temperatures and improve heat retention. A 0.8 kW heating system ensures uniform heating under vacuum conditions for gentle sample processing. The two-section PID controller with LED display enables accurate temperature control and monitoring. Additional features such as a 0–9999 minute programmable timer and over-temperature alarm protection support reliable and safe operation for routine laboratory drying.

Why choose Labotemp Vacuum Oven FOV-24?

✓ Gentle Vacuum Drying: Four-wall conduction heating enables safe drying of sensitive samples.
✓ Precise Temperature Control: PID controller maintains stable heating with ±1°C accuracy.
✓ Compact Laboratory Design: 24 L chamber ideal for controlled vacuum drying of small lab samples.

$1416

Temperature Range : RT+10–250°C Temperature Range	RT+10–250°C
Capacity : 24L Capacity	24L
Power Supply : AC220V / 3.6A (50/60Hz) Power Supply	AC220V / 3.6A (50/60Hz)
Vacuum Degree Range : <133Pa Vacuum Degree Range	<133Pa
Temperature Resolution : 0.1°C Temperature Resolution	0.1°C
Temperature Fluctuation : ±1°C Temperature Fluctuation	±1°C
Heating-Up Time : 80 min Heating-Up Time	80 min
Power Rating : 0.8 kW Power Rating	0.8 kW
Nozzle Diameter : 10 mm Nozzle Diameter	10 mm
Heating Mode : Four walls heat conduction and decompression Heating Mode	Four walls heat conduction and decompression
Number of Shelves : 4 Number of Shelves	4
Insulation Layer : High quality aluminium silicate cotton Insulation Layer	High quality aluminium silicate cotton
Heater : Stainless steel electric heating tube Heater	Stainless steel electric heating tube
Observation Window : Bullet proof tempered glass Observation Window	Bullet proof tempered glass
Vacuum Display : LCD display, accuracy class 0.5 Vacuum Display	LCD display, accuracy class 0.5
Timer : 0–9999 minutes (with timing wait function) Timer	0–9999 minutes (with timing wait function)
Operation Function : Fixed temperature operation, timing function, auto stop Operation Function	Fixed temperature operation, timing function, auto stop
Temperature Sensor : PT100 Temperature Sensor	PT100
Safety Device : Over temperature sound-light alarm Safety Device	Over temperature sound-light alarm
Inner Chamber (W×D×H) : 300 × 300 × 270 mm Inner Chamber (W×D×H)	300 × 300 × 270 mm
Exterior Size (W×D×H) : 480 × 480 × 606 mm Exterior Size (W×D×H)	480 × 480 × 606 mm
Inner Chamber : High quality stainless steel sheet Inner Chamber	High quality stainless steel sheet
Outer Shell : Cold rolling steel electrostatic spraying exterior Outer Shell	Cold rolling steel electrostatic spraying exterior
Load per Rack : 15 kg Load per Rack	15 kg
Shelf Space : 40 mm Shelf Space	40 mm
Packing Size (W×D×H) : 580×540×760mm Packing Size (W×D×H)	580×540×760mm
Net Weight : 42kg Net Weight	42kg
Gross Weight : 52kg Gross Weight	52kg

Gentle 24L Vacuum Dry
➤ Gentle 24L Vacuum Dry
Provides controlled low-temperature drying with a range of RT+10°C to 250°C, ideal for heat-sensitive materials.
➤ Provides controlled low-temperature drying with a range of RT+10°C to 250°C, ideal for heat-sensitive materials.
Uses a two-section PID controller with an LED display for precise, stable temperature control inside a vacuum environment.
➤ Uses a two-section PID controller with an LED display for precise, stable temperature control inside a vacuum environment.
The chamber is made of high-quality stainless steel with alumina silicate fiber insulation, ensuring durability and excellent heat retention.
➤ The chamber is made of high-quality stainless steel with alumina silicate fiber insulation, ensuring durability and excellent heat retention.
Powered by a 0.8 kW heating system, designed for uniform heating under reduced pressure, minimizing oxidation and contamination.
➤ Powered by a 0.8 kW heating system, designed for uniform heating under reduced pressure, minimizing oxidation and contamination.
Safety features include an over-temperature alarm and a programmable 0–9999 min timer for reliable unattended operation.
➤ Safety features include an over-temperature alarm and a programmable 0–9999 min timer for reliable unattended operation.

Ideal for drying heat-sensitive, easily oxidized, or moisture-sensitive materials under vacuum conditions
➤ Ideal for drying heat-sensitive, easily oxidized, or moisture-sensitive materials under vacuum conditions
Commonly used in pharmaceuticals, electronics, chemical labs, and materials research where gentle, contamination-free drying is required
➤ Commonly used in pharmaceuticals, electronics, chemical labs, and materials research where gentle, contamination-free drying is required
Suitable for powders, granules, and delicate components that require drying without thermal damage
➤ Suitable for powders, granules, and delicate components that require drying without thermal damage

shelf
➤ shelf
Silicone connecting tube, vacuum pump filter, vacuum pump
➤ Silicone connecting tube, vacuum pump filter, vacuum pump

Gentle 24L Vacuum Dry
Provides controlled low-temperature drying with a range of RT+10°C to 250°C, ideal for heat-sensitive materials.
Uses a two-section PID controller with an LED display for precise, stable temperature control inside a vacuum environment.
The chamber is made of high-quality stainless steel with alumina silicate fiber insulation, ensuring durability and excellent heat retention.
Powered by a 0.8 kW heating system, designed for uniform heating under reduced pressure, minimizing oxidation and contamination.
Safety features include an over-temperature alarm and a programmable 0–9999 min timer for reliable unattended operation.

shelf
Silicone connecting tube, vacuum pump filter, vacuum pump

Ideal for drying heat-sensitive, easily oxidized, or moisture-sensitive materials under vacuum conditions.
Commonly used in pharmaceuticals, electronics, chemical labs, and materials research where gentle, contamination-free drying is required.
Suitable for powders, granules, and delicate components that require drying without thermal damage.
