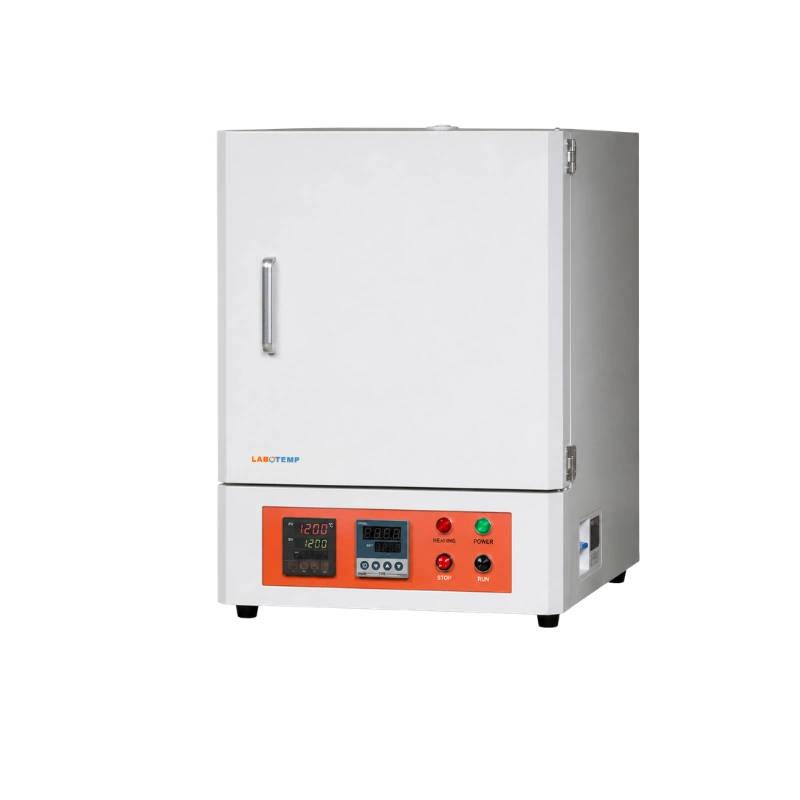

Labotemp Muffle Furnace FMU-24 is an electric muffle furnace designed for reliable high-temperature processing in research laboratories, testing facilities, and industrial applications. With a maximum operating temperature of 1200°C, it is suitable for ashing, calcination, ignition testing, sintering, ceramic and glass firing, heat treatment, and material analysis. The furnace uses embedded HRE alloy heating elements with multi-side heating to promote a uniform thermal environment, while high-alumina ceramic fiber insulation helps reduce heat loss and improve heating efficiency.
Designed as a dependable laboratory furnace and digital muffle oven, the FMU-24 combines programmable PID temperature control with automatic tuning for stable, repeatable thermal processes. Type-N thermocouple monitoring supports accurate temperature feedback, while over-temperature, thermocouple failure, burnout, and power-failure protection enhance operational safety. Durable electrical components and robust insulation support long-term laboratory use, while programmable heating profiles allow users to tailor heating rates and temperature stages to specific processes. This makes the FMU-24 a practical lab muffle furnace for laboratories seeking consistent temperature control, energy-conscious operation, and dependable performance.
Why Choose Labotemp Muffle Furnace FMU-24?
✓ High-Temperature Performance: Up to 1200°C for demanding laboratory heat-treatment applications.
✓ Precise Digital Control: Programmable PID control with auto-tuning for stable thermal processes.
✓ Enhanced Safety: Protection against overheating, thermocouple failure, burnout, and power interruption.
| General Specifications | |
|
Furnace Type : Muffle Furnace (Benchtop) Furnace Type |
Muffle Furnace (Benchtop) |
|
Heating Element : HRE Heating Wire Heating Element |
HRE Heating Wire |
|
Thermocouple : Type N Thermocouple |
Type N |
|
Chamber Material : High-alumina 1500# ceramic fiber board Chamber Material |
High-alumina 1500# ceramic fiber board |
|
Furnace Door : Side open Furnace Door |
Side open |
|
Atmosphere : None Atmosphere |
None |
|
Cooling Method : Air cooling Cooling Method |
Air cooling |
|
Power Supply : 240 V, 60 Hz, Single Phase Power Supply |
240 V, 60 Hz, Single Phase |
|
Power Consumption : 4 kW Power Consumption |
4 kW |
|
Operating Temperature : Ambient 0–50°C Operating Temperature |
Ambient 0–50°C |
|
Relative Humidity : ≤90% Relative Humidity |
≤90% |
| Thermal Parameters | |
|
Maximum Temperature : 1200°C, ≤2 hours Maximum Temperature |
1200°C, ≤2 hours |
|
Working Temperature : 1100°C, 24/7 Working Temperature |
1100°C, 24/7 |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Temperature Uniformity : ±5°C Temperature Uniformity |
±5°C |
|
Temperature Measurement : Single-point measurement Temperature Measurement |
Single-point measurement |
|
Temperature Monitoring : Tested at back-wall center Temperature Monitoring |
Tested at back-wall center |
|
Heating Rate : ≤25°C/min Heating Rate |
≤25°C/min |
|
Temperature Controller : Yudian 50-segment controller Temperature Controller |
Yudian 50-segment controller |
| Chamber Dimensions | |
|
Chamber Size : W220 × D300 × H220 mm Chamber Size |
W220 × D300 × H220 mm |
|
Chamber Volume : 14 L Chamber Volume |
14 L |
