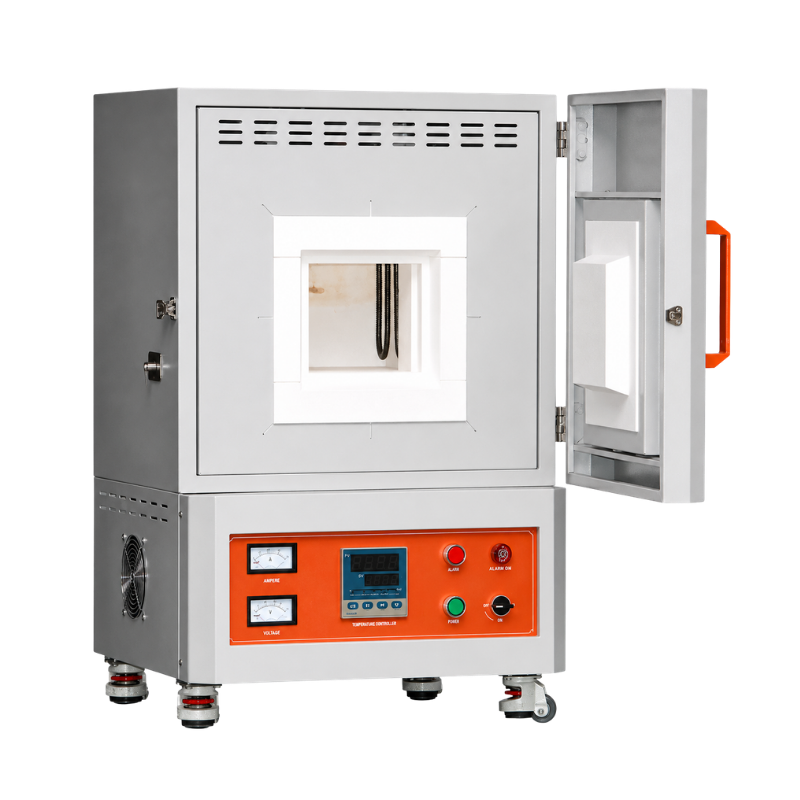

Labotemp Muffle Furnace FMU-23 is a compact high-temperature laboratory muffle furnace engineered for precision sintering, ceramic research, metal material testing, and advanced composite processing requiring stable thermal performance up to 1700°C. Built around premium 1800-grade MoSi2 heating rods with excellent high-temperature oxidation resistance, this furnace delivers consistent and clean heat treatment in an 8-litre chamber (200×200×200mm). The high-purity ultra-clean alumina polycrystalline fiber insulation, vacuum-formed for exceptional chemical stability, effectively prevents sample contamination and ensures sintering purity across critical research and industrial workflows.
The dual-carbon shell air-cooled structure with built-in forced convection maintains the furnace surface within room temperature +45°C, ensuring operator safety during continuous high-temperature operation. A 50-segment programmable digital PID intelligent control system paired with precision B-type thermocouples delivers ±1°C temperature accuracy and repeatable thermal profiles for complex research protocols. With 5kW single-phase power supply and optional gas inlet/outlet, exhaust port, touchscreen, and RS485 communication interface, the FMU-23 supports both standard and atmosphere-controlled sintering environments.
Why Choose Labotemp Muffle Furnace FMU-23?
✓ Extreme temperature capability: MoSi2 heating rods enable stable continuous operation up to 1600°C with 1700°C peak performance
✓ Contamination-free sintering: Vacuum-formed alumina fiber chamber ensures chemical stability and sample purity at high temperatures
✓ Precise programmable control: 50-segment PID controller with B-type thermocouples delivers ±1°C accuracy for repeatable results
| Technical Specifications | |
|
Maximum Temperature : 1700 °C Maximum Temperature |
1700 °C |
|
Continuous Operating Temperature : ≤ 1600 °C Continuous Operating Temperature |
≤ 1600 °C |
|
Heating Element : Premium 1800-grade MoSi₂ (Silicon Molybdenum) Rods Heating Element |
Premium 1800-grade MoSi₂ (Silicon Molybdenum) Rods |
|
Temperature Sensor : B-Type Thermocouple Temperature Sensor |
B-Type Thermocouple |
|
Temperature Control : 50-Segment Programmable Digital PID Controller Temperature Control |
50-Segment Programmable Digital PID Controller |
|
Temperature Accuracy : ±1 °C Temperature Accuracy |
±1 °C |
|
Chamber Insulation : High-Purity Ultra-Clean Alumina Polycrystalline Fiber (Vacuum Formed) Chamber Insulation |
High-Purity Ultra-Clean Alumina Polycrystalline Fiber (Vacuum Formed) |
| Electrical Performance | |
|
Power Supply : 220V 50/60Hz Power Supply |
220V 50/60Hz |
|
Rated Power : 5 kW Rated Power |
5 kW |
|
Phase : Single Phase Phase |
Single Phase |
| Chamber & Construction | |
|
Inner Chamber Dimensions (D × W × H) : 200 × 200 × 200 mm Inner Chamber Dimensions (D × W × H) |
200 × 200 × 200 mm |
|
Chamber Capacity : 8 Liters Chamber Capacity |
8 Liters |
|
Outer Dimensions (D × W × H) : 620 × 600 × 920 mm Outer Dimensions (D × W × H) |
620 × 600 × 920 mm |
|
Construction : Dual-Carbon Shell with Built-in Forced Air Cooling Construction |
Dual-Carbon Shell with Built-in Forced Air Cooling |
|
Surface Temperature : ≤ Ambient +45 °C Surface Temperature |
≤ Ambient +45 °C |
|
Cooling Method : Forced Air Convection Cooling Method |
Forced Air Convection |
|
Gross Weight : 220kg Gross Weight |
220kg |
|
Package Size : 750x740x1160mm Package Size |
750x740x1160mm |
