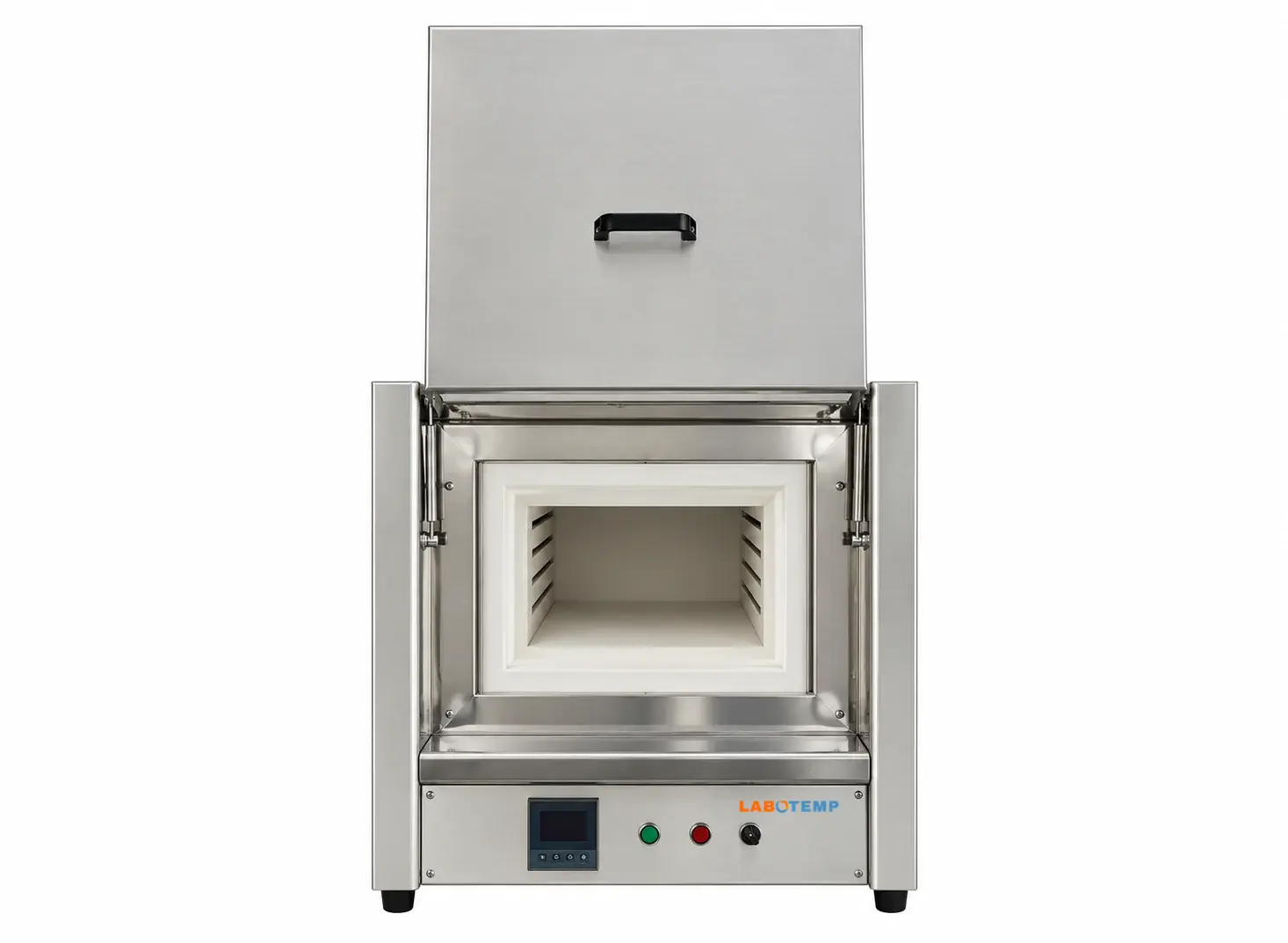

1200°C Atmosphere Furnace FMU-26

Name: 1200°C Atmosphere Furnace FMU-26
Brand: Labotemp
SKU: FMU-26
Price: 5696.00 USD
Availability: InStock
Rating: 4.8 (742 reviews)

Labotemp 1200°C Atmosphere Furnace FMU-26 supports high-temperature thermal processing in laboratory and industrial environments. Featuring a 16 L chamber with internal dimensions of 200 × 400 × 200 mm, this furnace reaches a maximum temperature of 1200°C for up to 2 hours and supports continuous operation at 1100°C. Applications include ashing, calcination, ignition testing, gravimetric analysis, and other high-temperature heat treatment processes.

Equipped with HRE heating wire arranged for two-sided heating, the FMU-26 features a Yudian 50-segment PID controller with automatic tuning for programmable temperature control. The high-alumina ceramic fiber chamber, N-type thermocouple, and sealed chamber design support consistent thermal processing. Additional features include a vertically opening door, top exhaust vent, air cooling, overheat protection, and power failure protection. Temperature accuracy of ±1°C and temperature uniformity of ±5°C support precise heating performance.

Why Choose Labotemp 1200°C Atmosphere Furnace FMU-26?

✓Programmable Temperature Control: The 50-segment PID controller with automatic tuning supports flexible temperature programming.
✓Reliable High-Temperature Performance: Reaches 1200°C for short-duration processes and supports continuous operation at 1100°C.
✓Enhanced Operational Safety: Overheat and power failure protection help safeguard furnace operation.

$5696

Datasheet

General Specifications
Product Name : 1200°C Atmosphere Furnace Product Name	1200°C Atmosphere Furnace
Model : FMU-26 Model	FMU-26
Furnace Type : Atmosphere Furnace Furnace Type	Atmosphere Furnace
Chamber Capacity : 16 L Chamber Capacity	16 L
Chamber Dimensions (W × D × H) : 200 × 400 × 200 mm Chamber Dimensions (W × D × H)	200 × 400 × 200 mm
Maximum Temperature : 1200°C (≤2 hours) Maximum Temperature	1200°C (≤2 hours)
Continuous Working Temperature : 1100°C Continuous Working Temperature	1100°C
Temperature Accuracy : ±1°C Temperature Accuracy	±1°C
Temperature Uniformity : ±5°C Temperature Uniformity	±5°C
Heating Rate : ≤25°C/min Heating Rate	≤25°C/min
Heating and Temperature Control
Heating Element : HRE Heating Wire Heating Element	HRE Heating Wire
Heating Arrangement : Two-Sided Heating Heating Arrangement	Two-Sided Heating
Temperature Controller : Yudian 828, 50-Segment Controller Temperature Controller	Yudian 828, 50-Segment Controller
Control System : PID Automatic Control with Auto-Tune Function Control System	PID Automatic Control with Auto-Tune Function
Thermocouple : Type N Thermocouple	Type N
Temperature Measurement : Single-Point Measurement Temperature Measurement	Single-Point Measurement
Temperature Monitoring Location : Center of the Back Wall Temperature Monitoring Location	Center of the Back Wall
Chamber and Construction

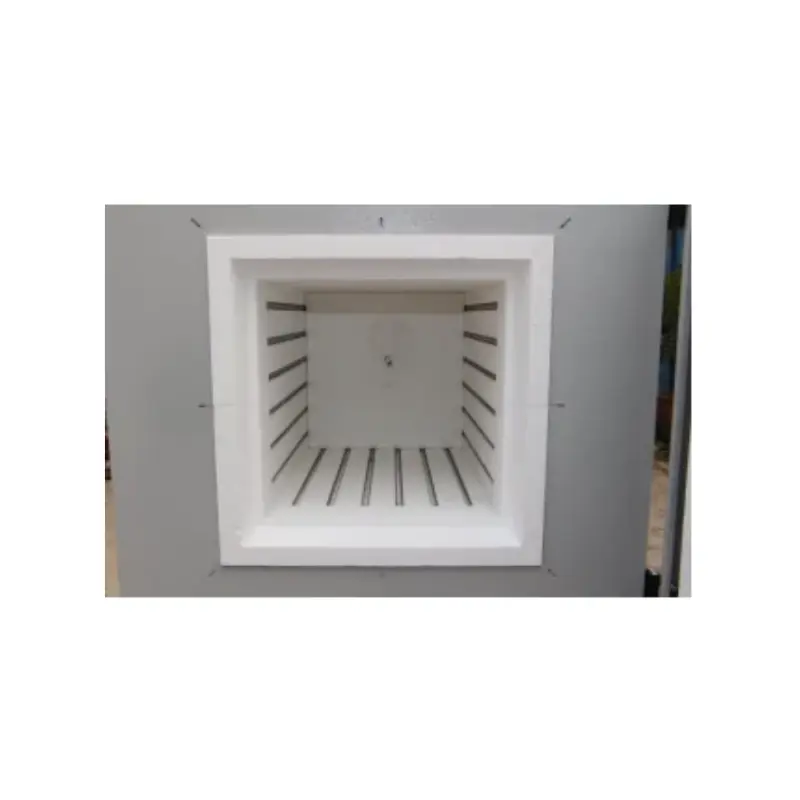

Chamber Material : High-Alumina 1600# Ceramic Fiber Board Chamber Material	High-Alumina 1600# Ceramic Fiber Board
Furnace Shell : Dual Carbon Steel Shell with Environmental Powder Coating Furnace Shell	Dual Carbon Steel Shell with Environmental Powder Coating
Door Design : Vertical Opening Door Design	Vertical Opening
Sealing Design : Chamber Sealed from Outside to Inside Sealing Design	Chamber Sealed from Outside to Inside
Exhaust System : Exhaust Vent on the Top of the Furnace Exhaust System	Exhaust Vent on the Top of the Furnace
Cooling Method : Air Cooling Cooling Method	Air Cooling
Electrical Specifications
Power Supply : 220 V, 50 Hz, Single Phase Power Supply	220 V, 50 Hz, Single Phase
Rated Power : 3 kW Rated Power	3 kW
Electrical Components : Schneider Electrical Components	Schneider
Operating Ambient Temperature : 0°C to 50°C Operating Ambient Temperature	0°C to 50°C
Operating Relative Humidity : ≤90% Operating Relative Humidity	≤90%
Safety and Protection
Overheat Protection : Automatically Shuts Down the Furnace When the Temperature Exceeds the Acceptable Range Overheat Protection	Automatically Shuts Down the Furnace When the Temperature Exceeds the Acceptable Range
Power Failure Protection : Resumes Furnace Operation After Power Is Restored Power Failure Protection	Resumes Furnace Operation After Power Is Restored
Temperature Control Protection : Microprocessor-Based Self-Tuning PID Control Temperature Control Protection	Microprocessor-Based Self-Tuning PID Control

50-Segment Programmable PID Controller ➤ 50-Segment Programmable PID Controller
Provides a maximum temperature of 1200°C for up to 2 hours ➤ Provides a maximum temperature of 1200°C for up to 2 hours
Supports continuous operation at a working temperature of 1100°C ➤ Supports continuous operation at a working temperature of 1100°C
Features a 16 L chamber capacity for laboratory heat-treatment applications ➤ Features a 16 L chamber capacity for laboratory heat-treatment applications
Equipped with HRE heating wire arranged for two-sided heating ➤ Equipped with HRE heating wire arranged for two-sided heating
Includes a Yudian 50-segment PID controller with automatic tuning ➤ Includes a Yudian 50-segment PID controller with automatic tuning
Offers temperature accuracy of ±1°C and temperature uniformity of ±5°C ➤ Offers temperature accuracy of ±1°C and temperature uniformity of ±5°C
Features an N-type thermocouple for temperature measurement ➤ Features an N-type thermocouple for temperature measurement
Constructed with a high-alumina ceramic fiber chamber for thermal insulation ➤ Constructed with a high-alumina ceramic fiber chamber for thermal insulation
Designed with a dual carbon steel shell and powder-coated finish ➤ Designed with a dual carbon steel shell and powder-coated finish
Features a vertically opening furnace door for convenient access ➤ Features a vertically opening furnace door for convenient access
Includes a sealed chamber design and a top-mounted exhaust vent ➤ Includes a sealed chamber design and a top-mounted exhaust vent
Uses air cooling for furnace cooling ➤ Uses air cooling for furnace cooling
Provides overheat protection with automatic furnace shutdown ➤ Provides overheat protection with automatic furnace shutdown
Includes power failure protection to resume operation when power is restored ➤ Includes power failure protection to resume operation when power is restored
Supports a heating rate of up to 25°C/min ➤ Supports a heating rate of up to 25°C/min
Operates on a 220 V, 50 Hz, single-phase power supply with a rated power of 3 kW ➤ Operates on a 220 V, 50 Hz, single-phase power supply with a rated power of 3 kW

Suitable for determining the ash content of materials through high-temperature heating ➤ Suitable for determining the ash content of materials through high-temperature heating
Used for thermal decomposition and heat treatment of materials ➤ Used for thermal decomposition and heat treatment of materials
Suitable for laboratory ignition tests involving controlled high-temperature exposure ➤ Suitable for laboratory ignition tests involving controlled high-temperature exposure
Supports analytical procedures requiring heating samples for mass determination ➤ Supports analytical procedures requiring heating samples for mass determination
Used to remove wax from materials during thermal processing ➤ Used to remove wax from materials during thermal processing
Suitable for firing ceramic and glass seals ➤ Suitable for firing ceramic and glass seals
Used for high-temperature heat treatment of steel components ➤ Used for high-temperature heat treatment of steel components
Designed for heat-treatment applications requiring a controlled gas environment ➤ Designed for heat-treatment applications requiring a controlled gas environment

Crucible Tongs – 1 Pair ➤ Crucible Tongs – 1 Pair
Thermal Resistance Gloves – 1 Pair ➤ Thermal Resistance Gloves – 1 Pair
Instruction Manual – 1 ➤ Instruction Manual – 1
Piece Heating Elements (Installed) – 1 Set ➤ Piece Heating Elements (Installed) – 1 Set
